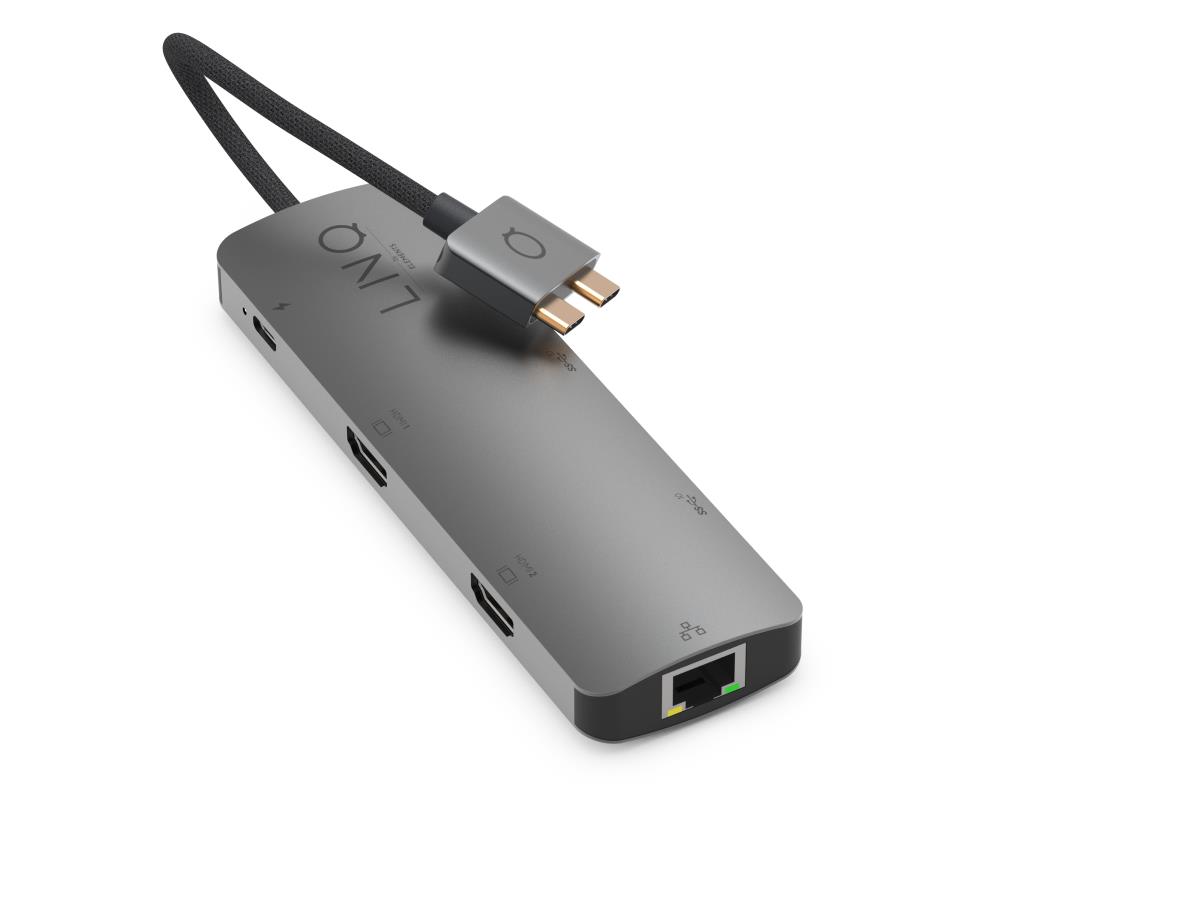

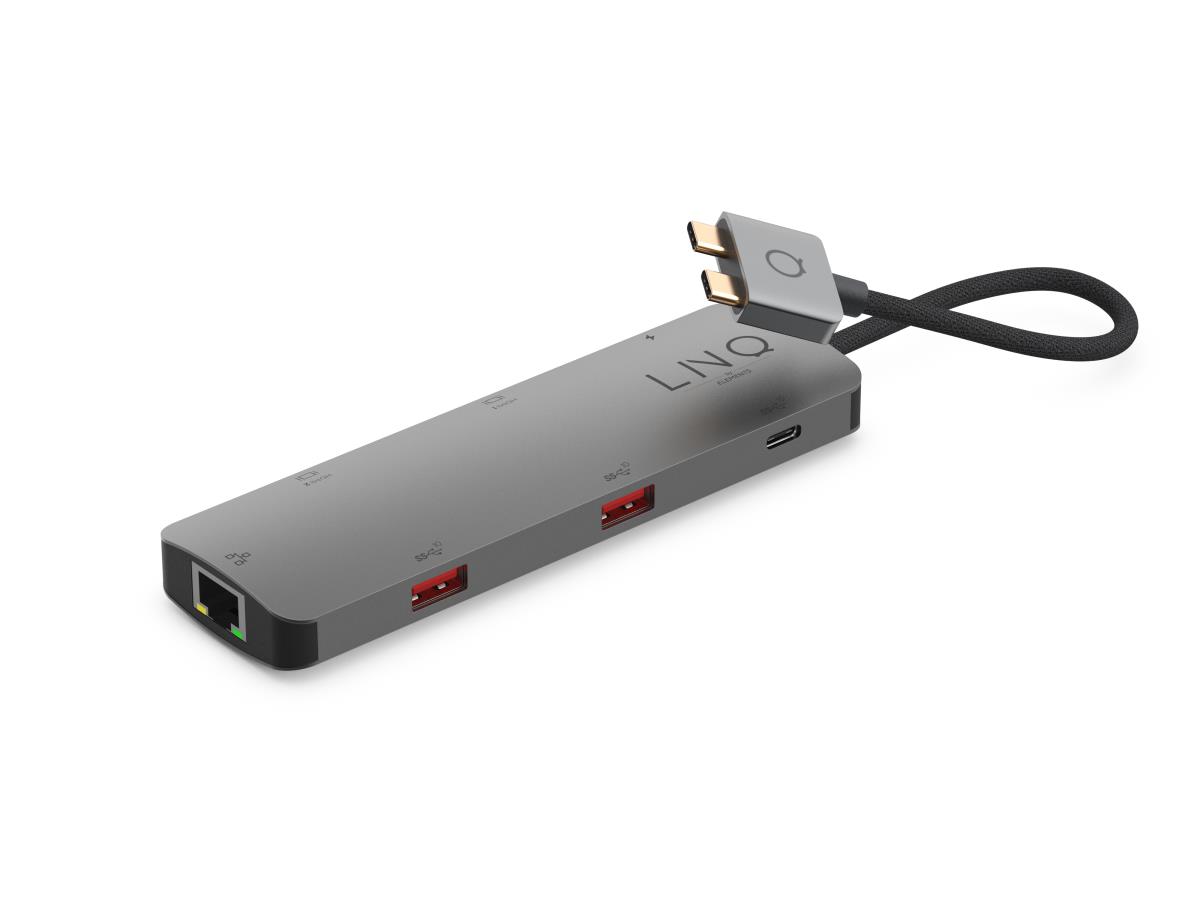

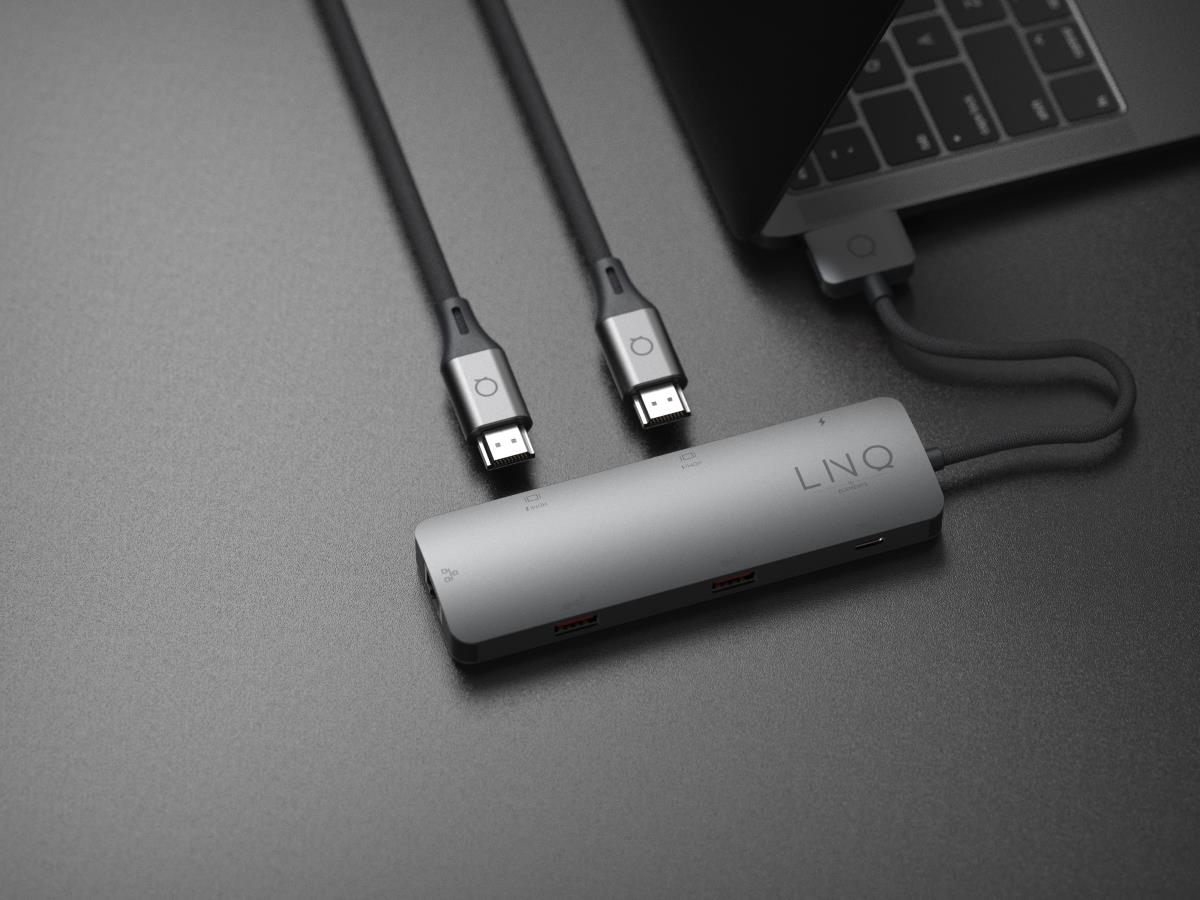

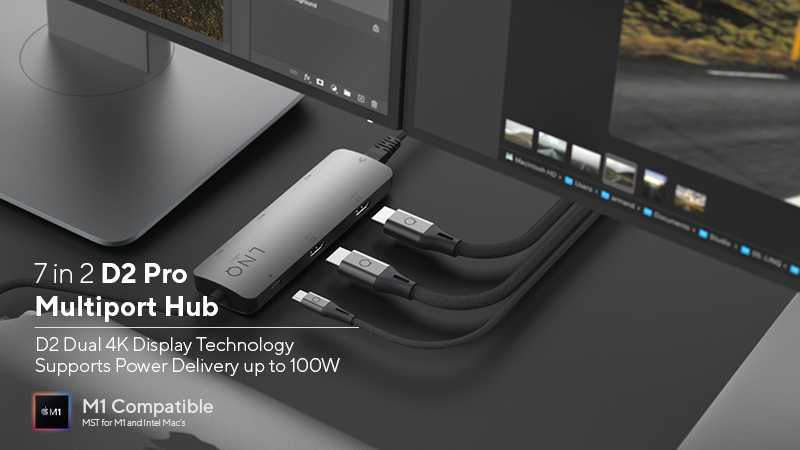

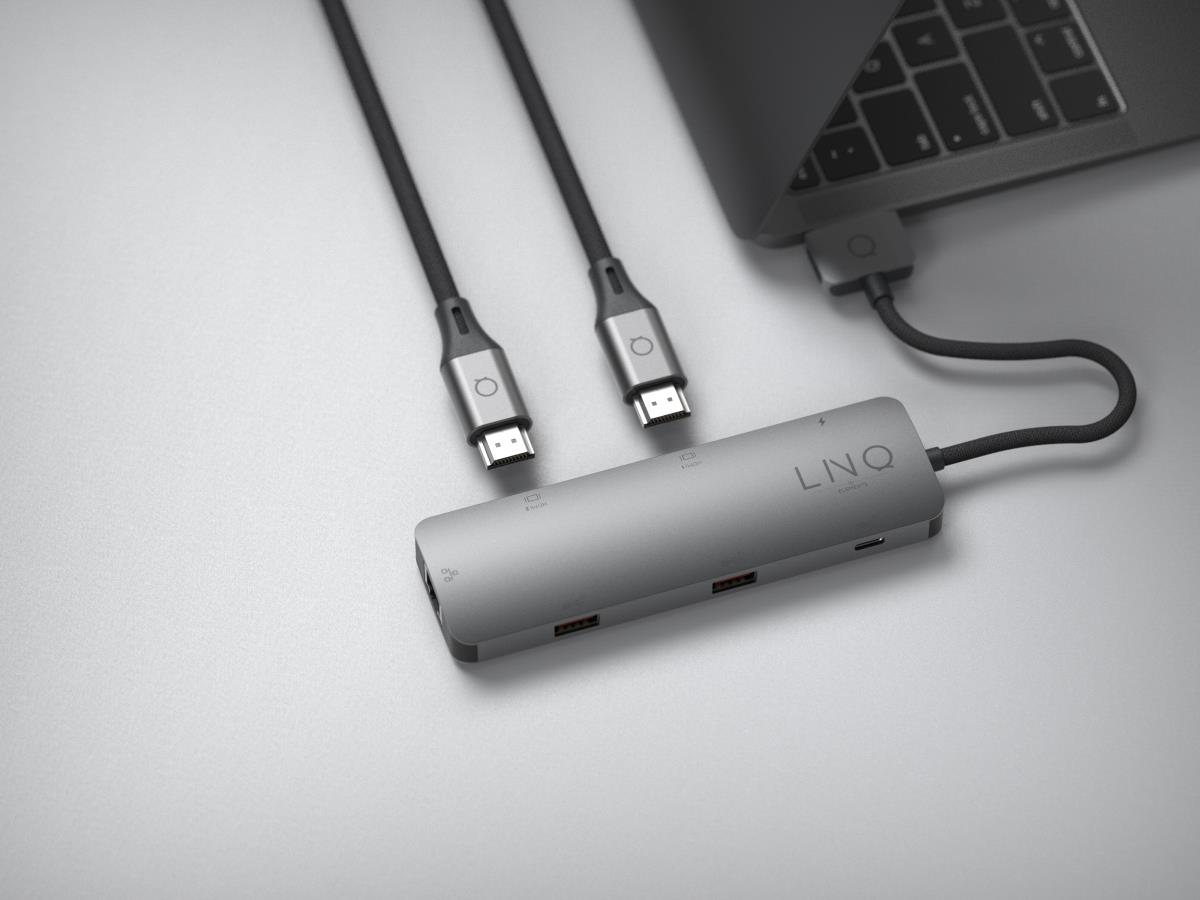

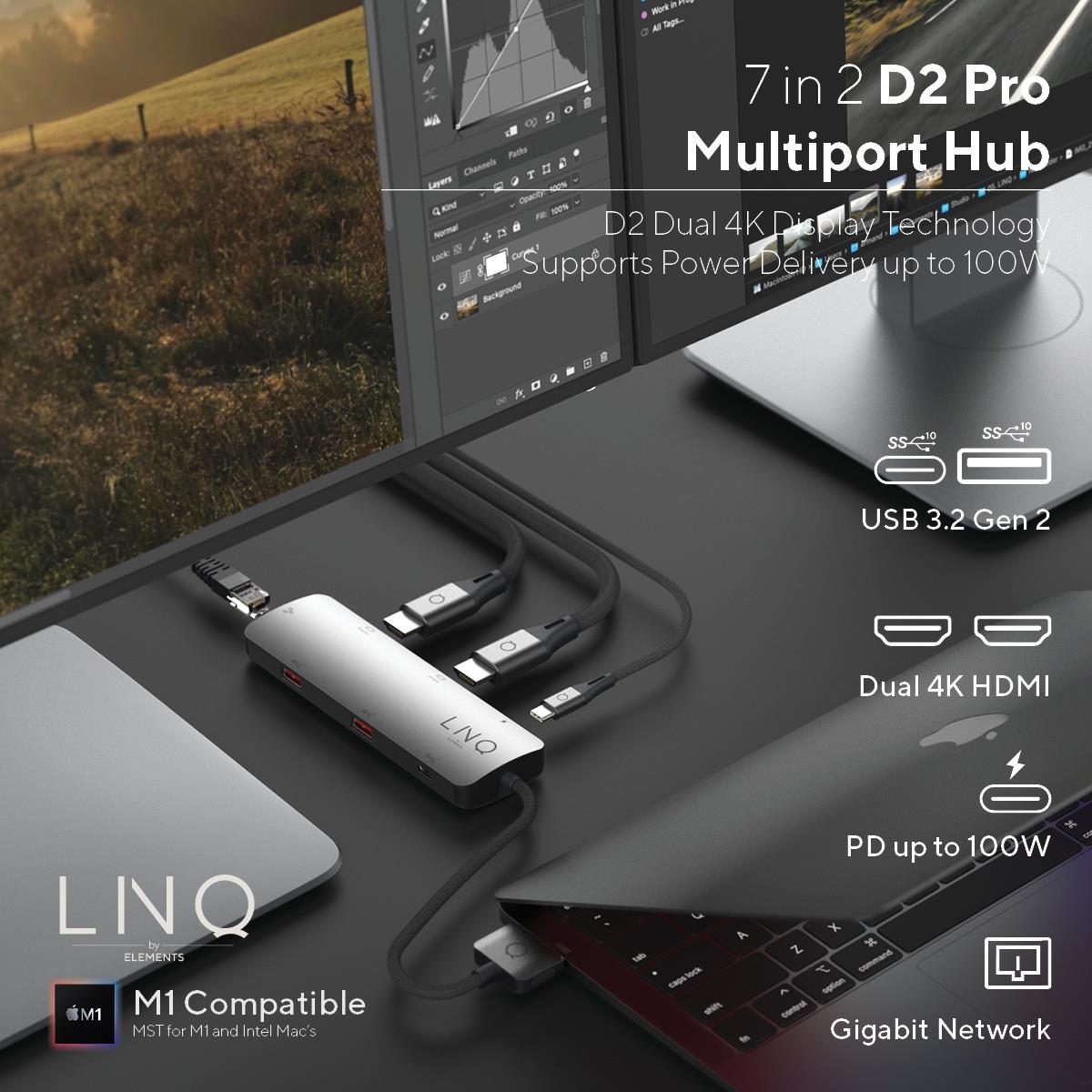

Linq 7in2 D2 Pro Mst USB-C Multiport Hub

Introduction

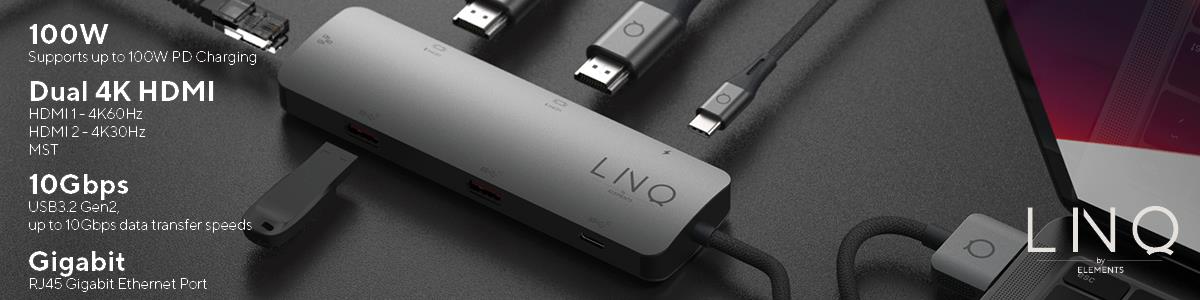

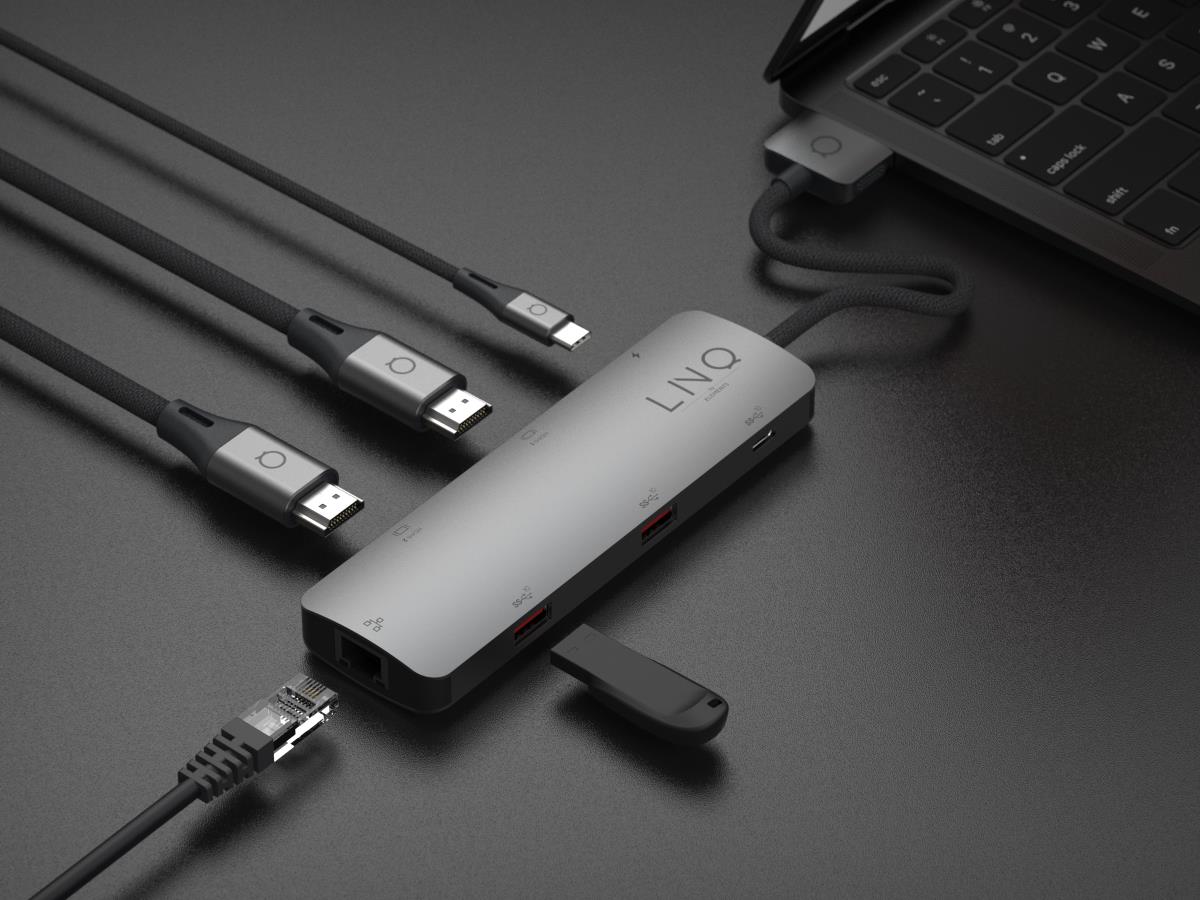

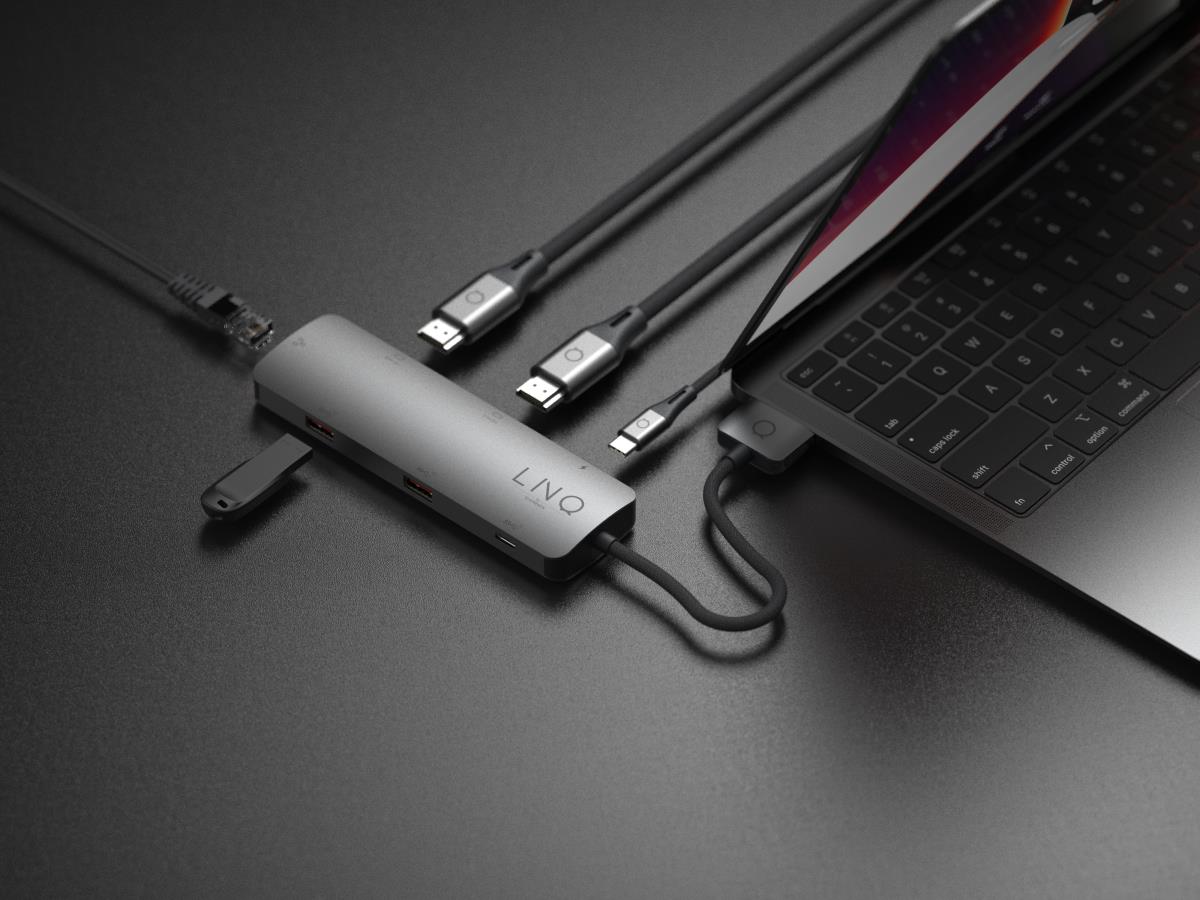

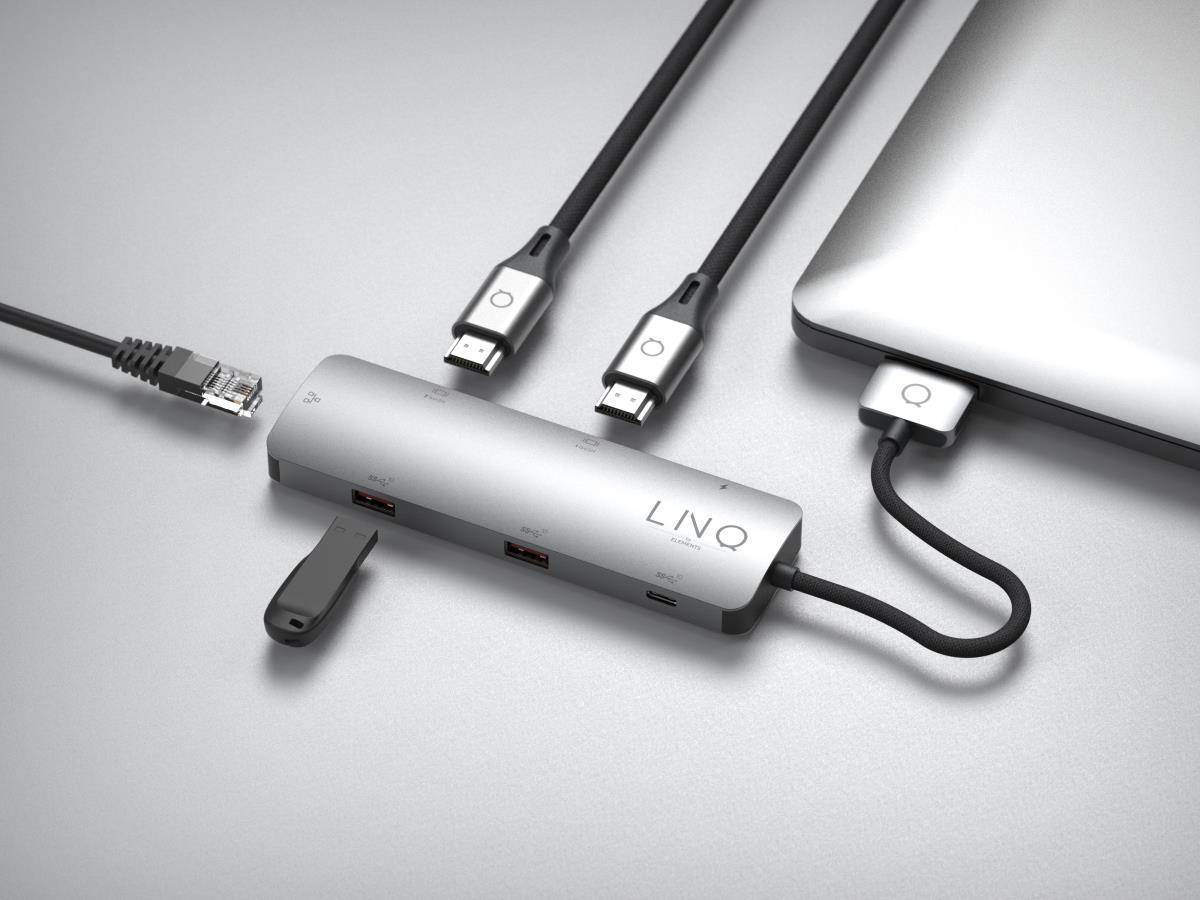

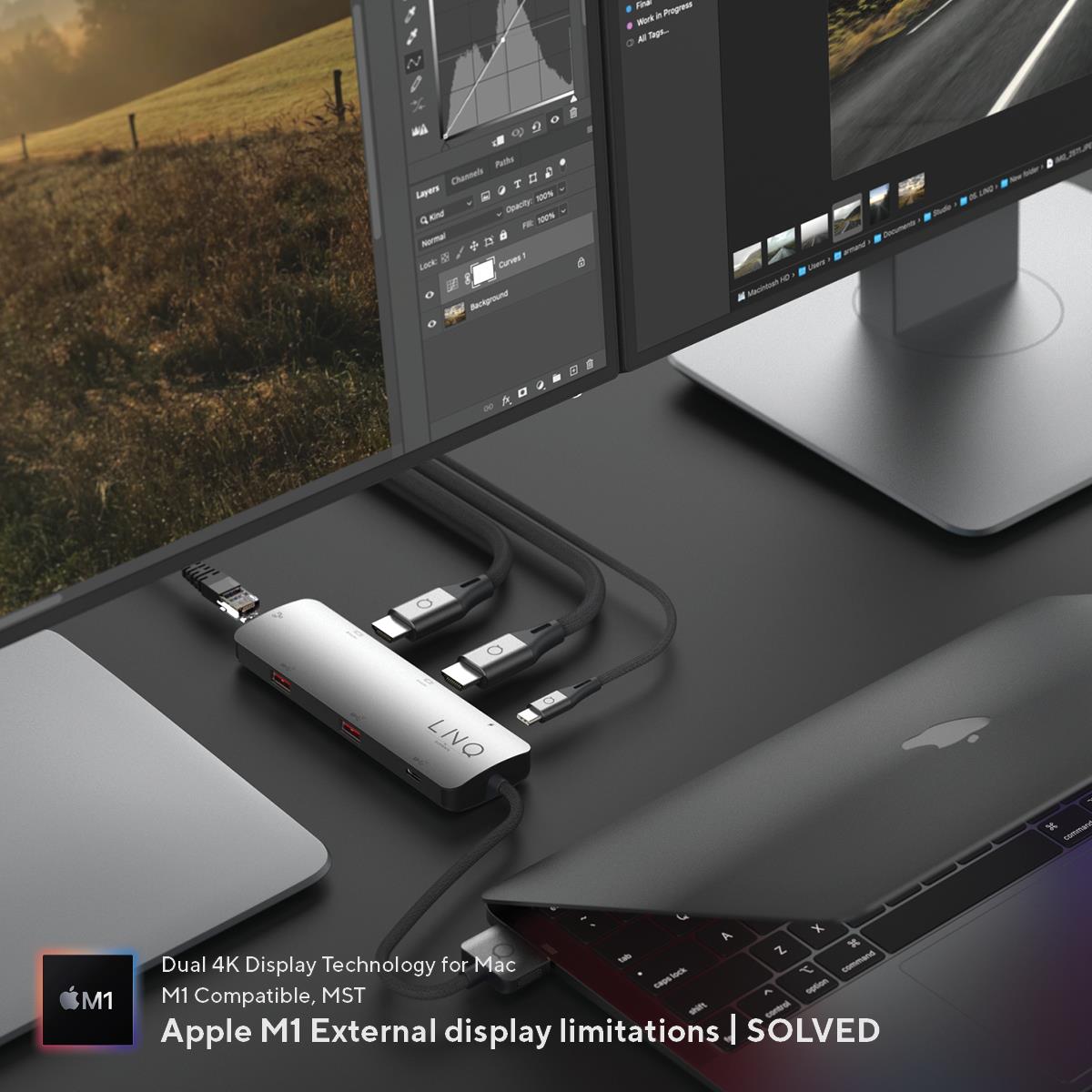

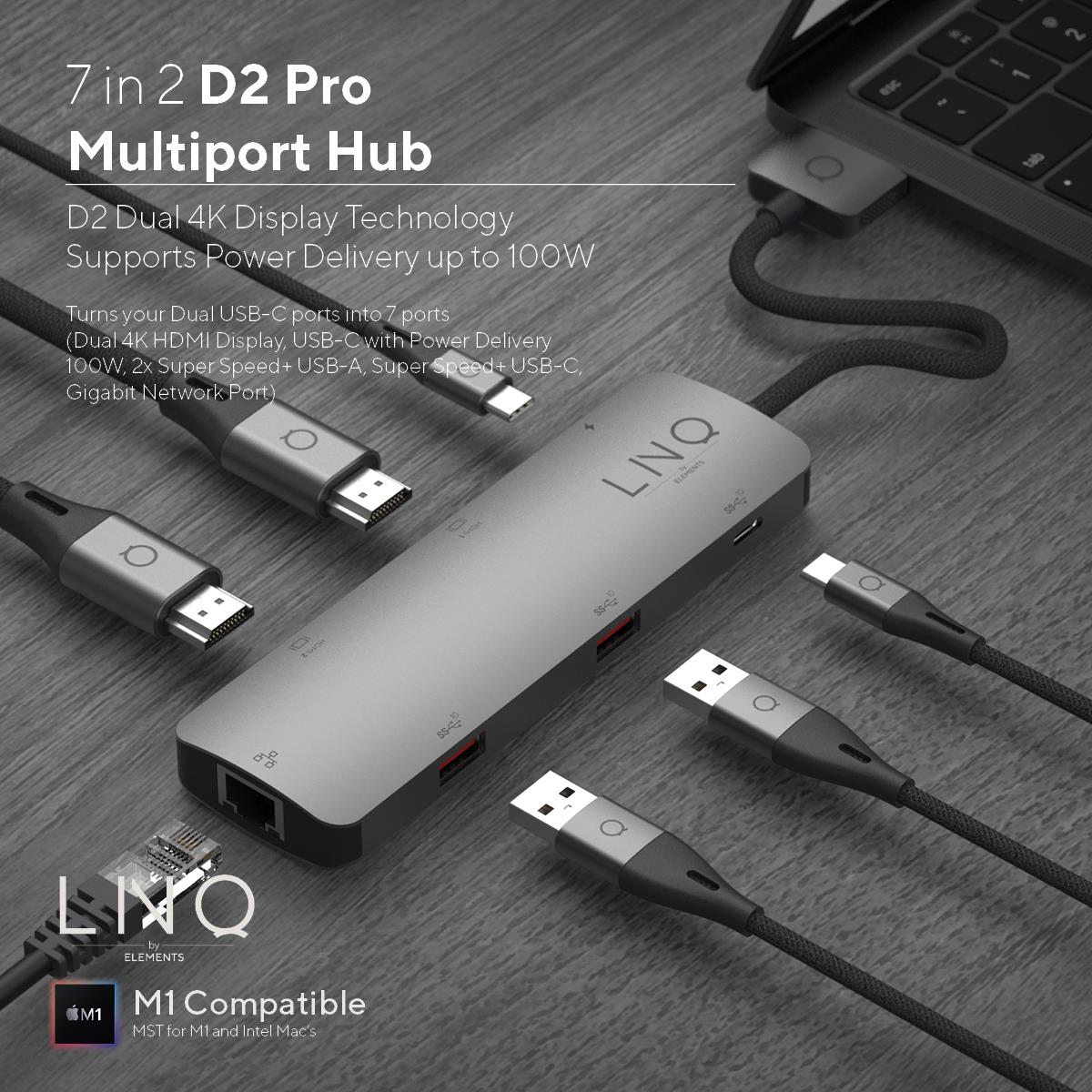

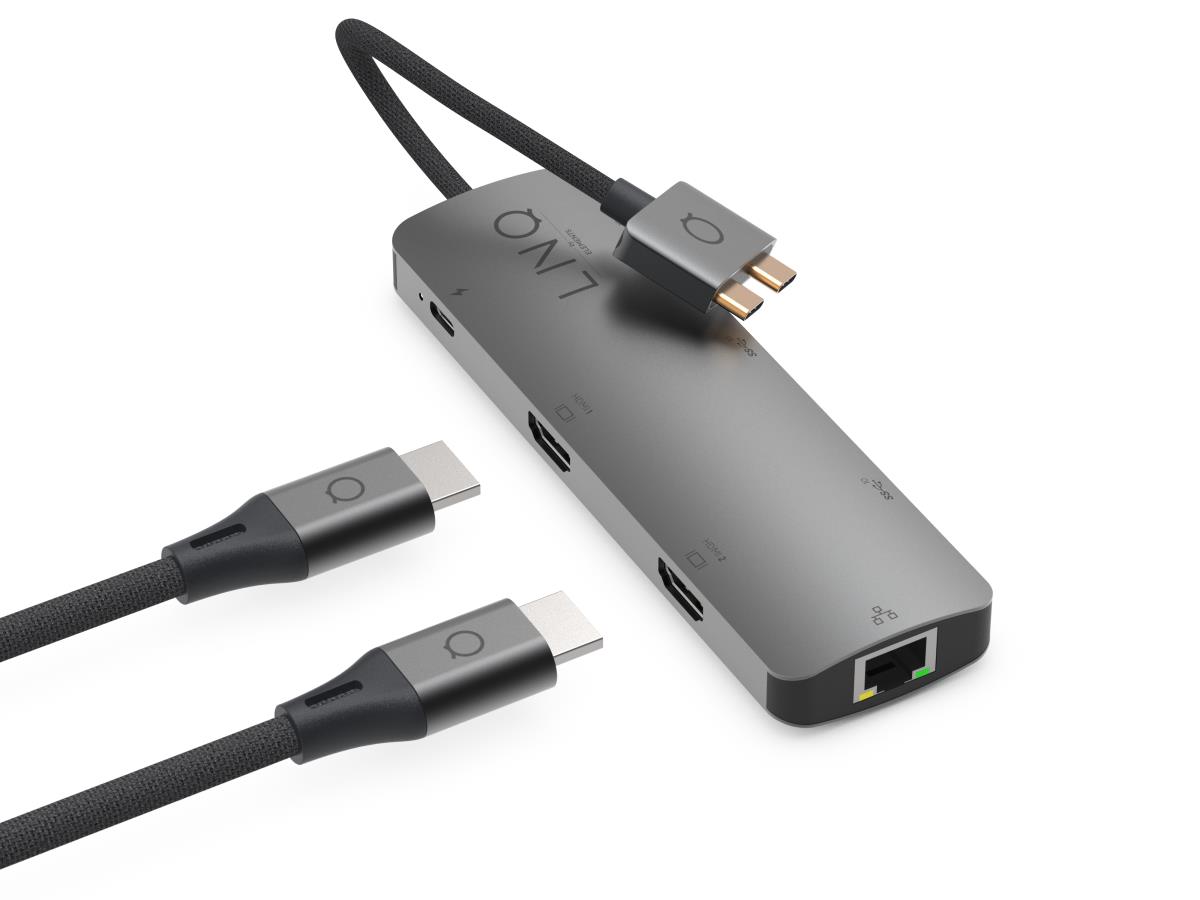

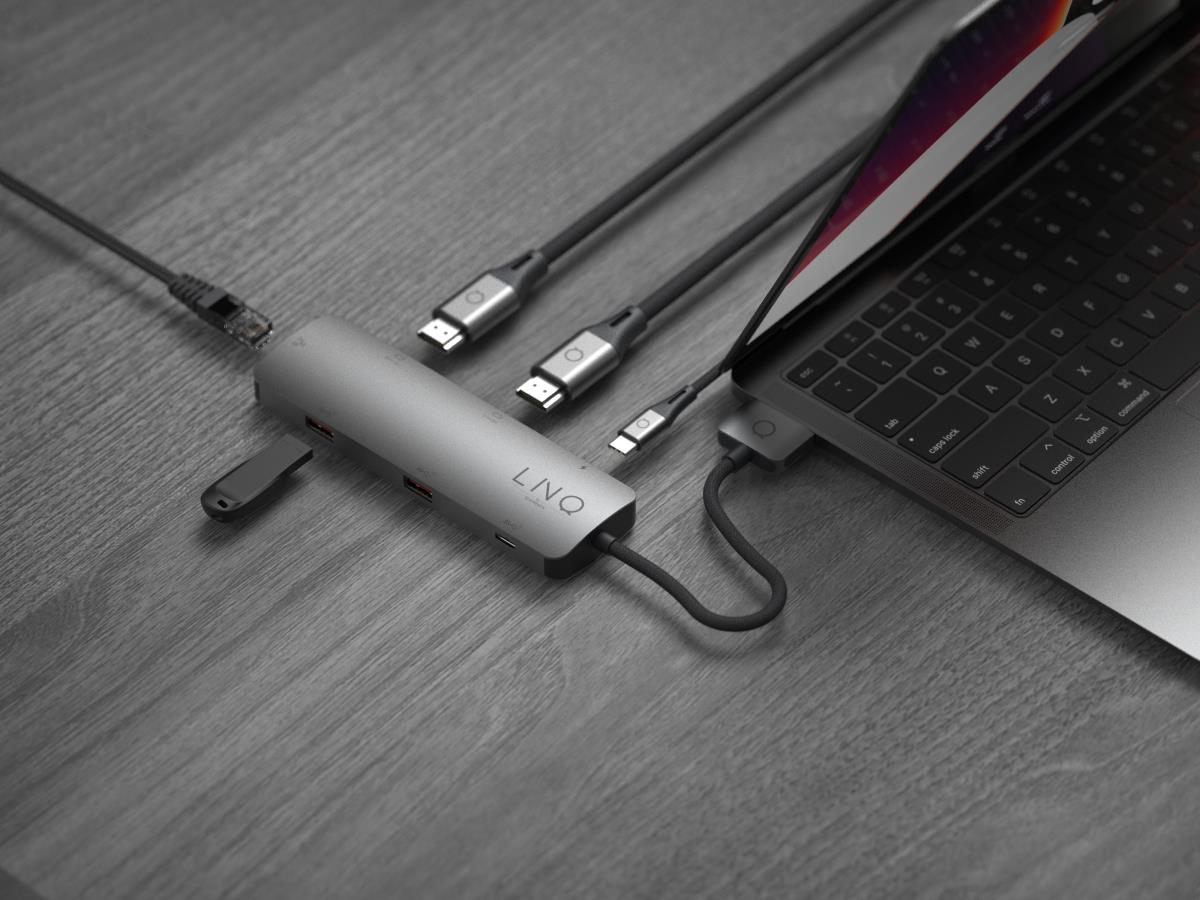

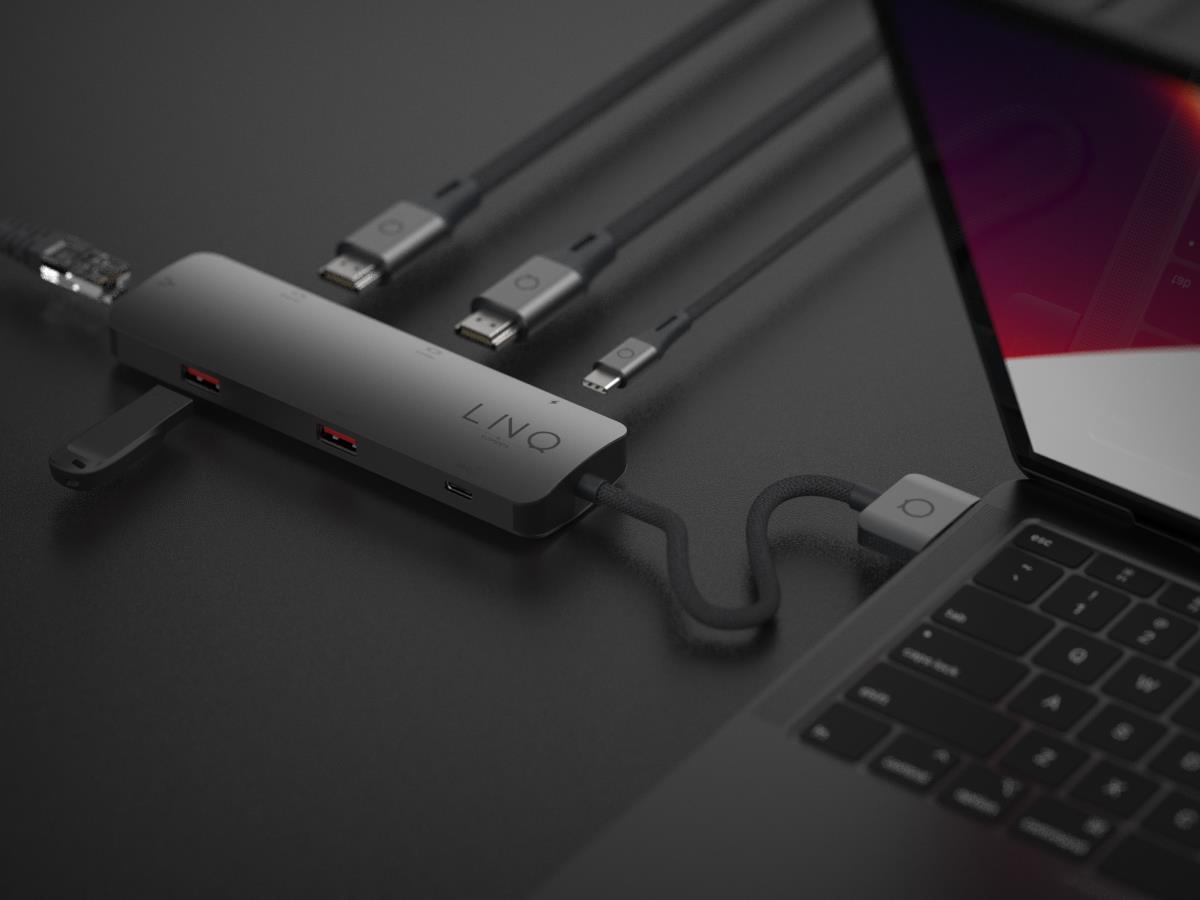

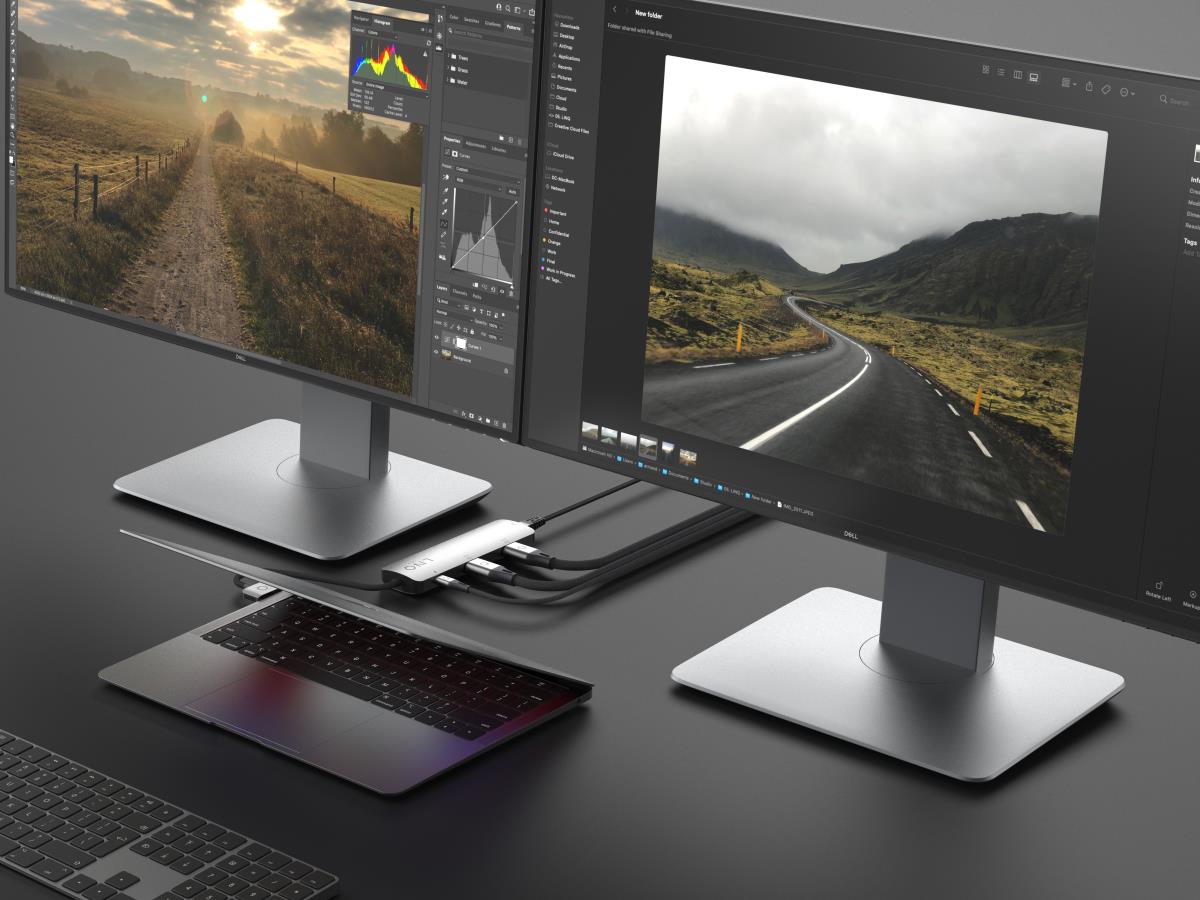

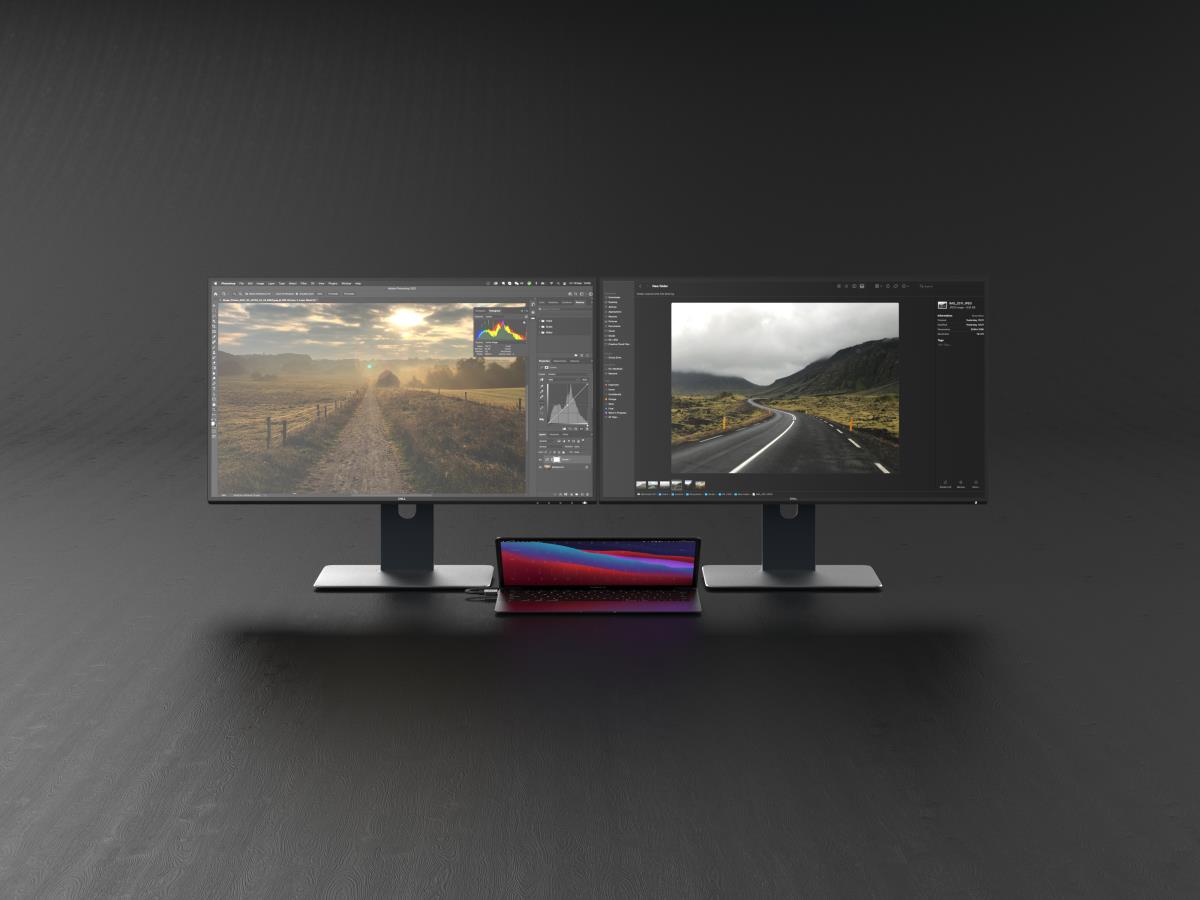

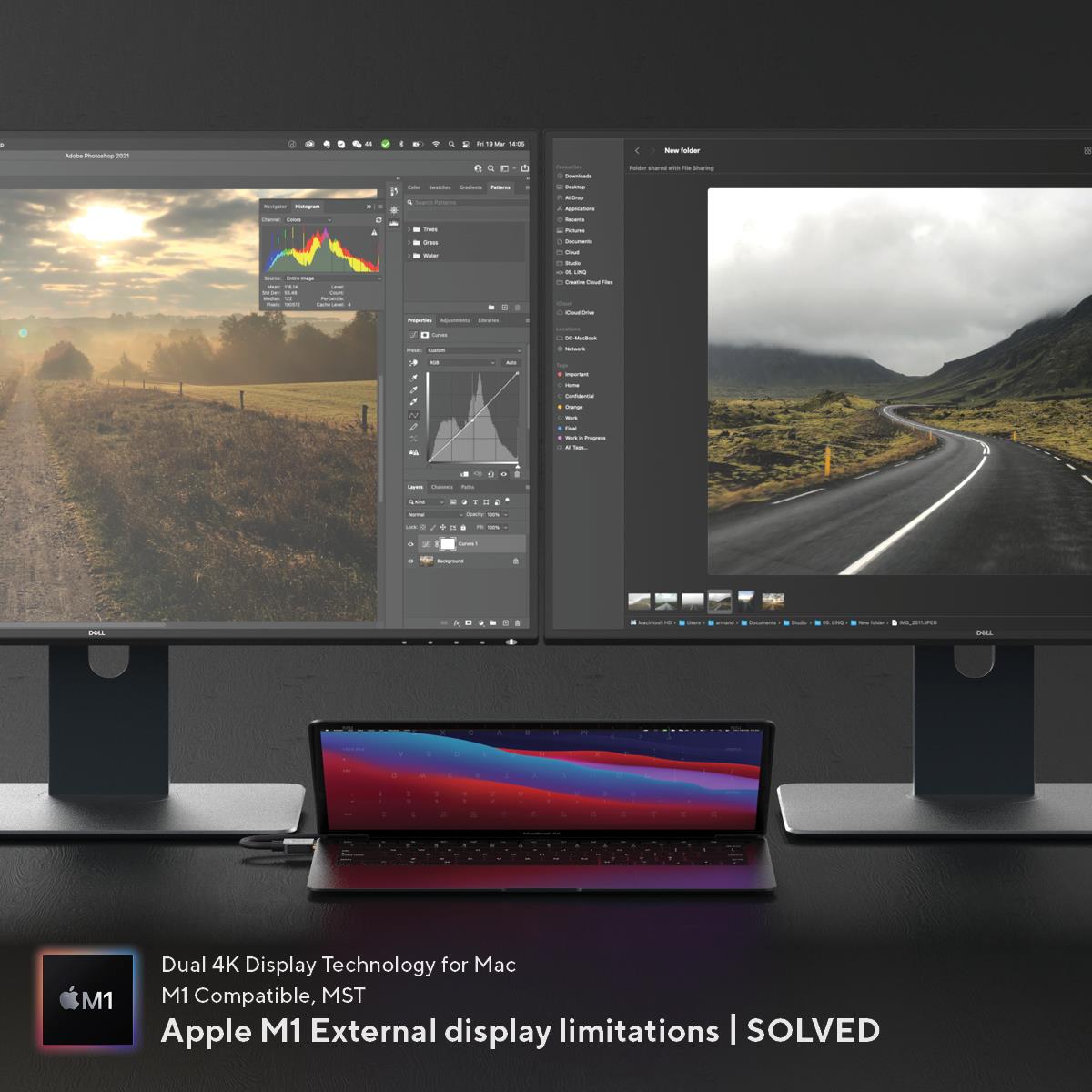

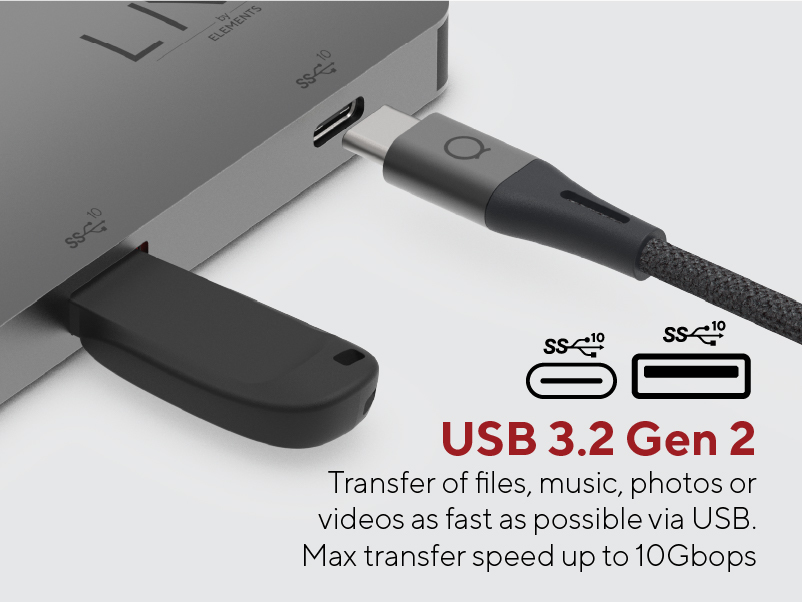

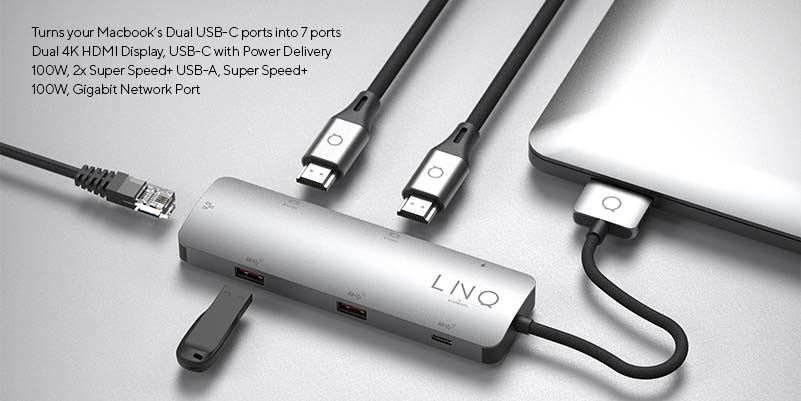

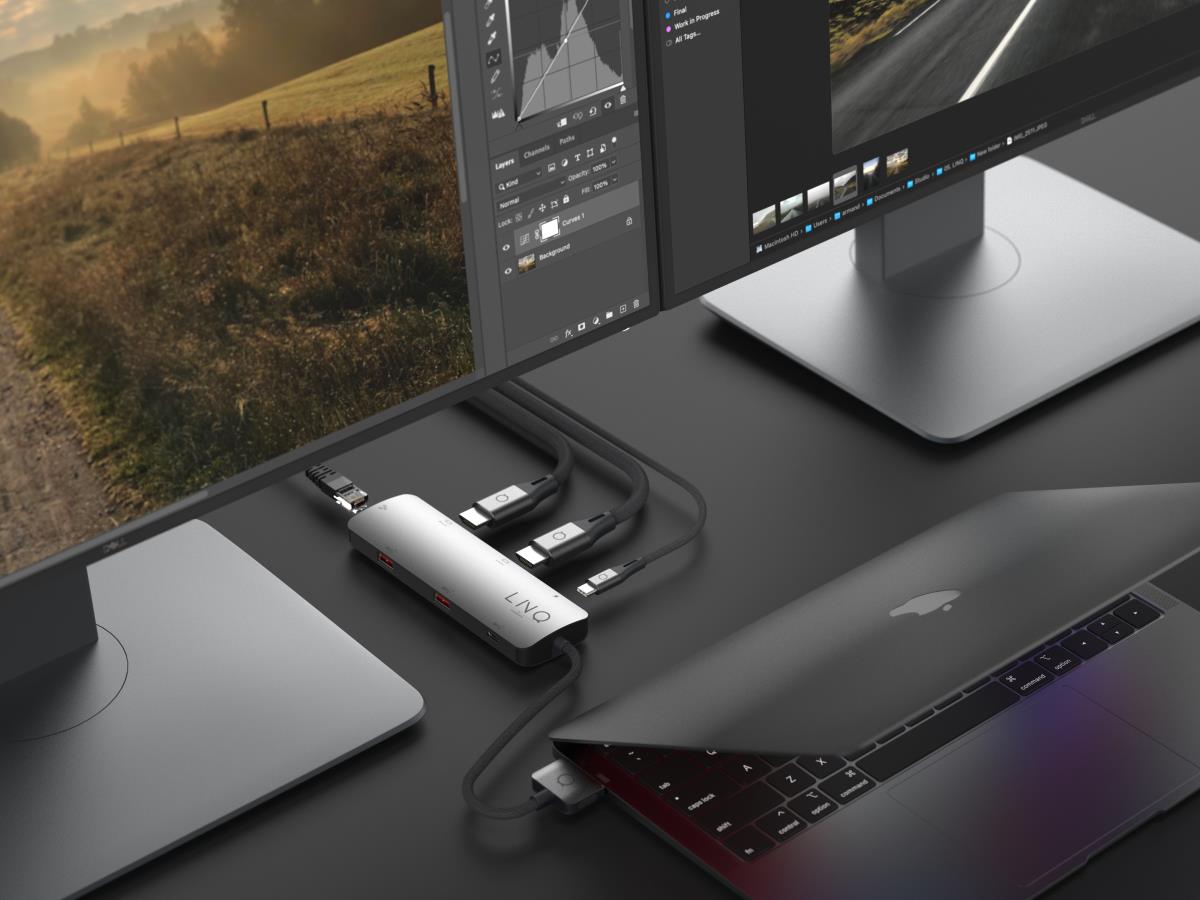

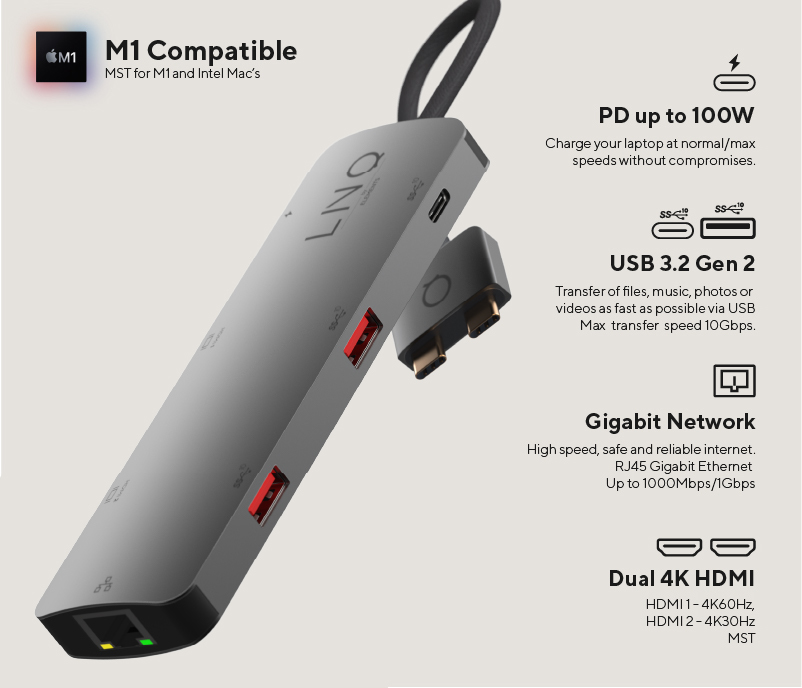

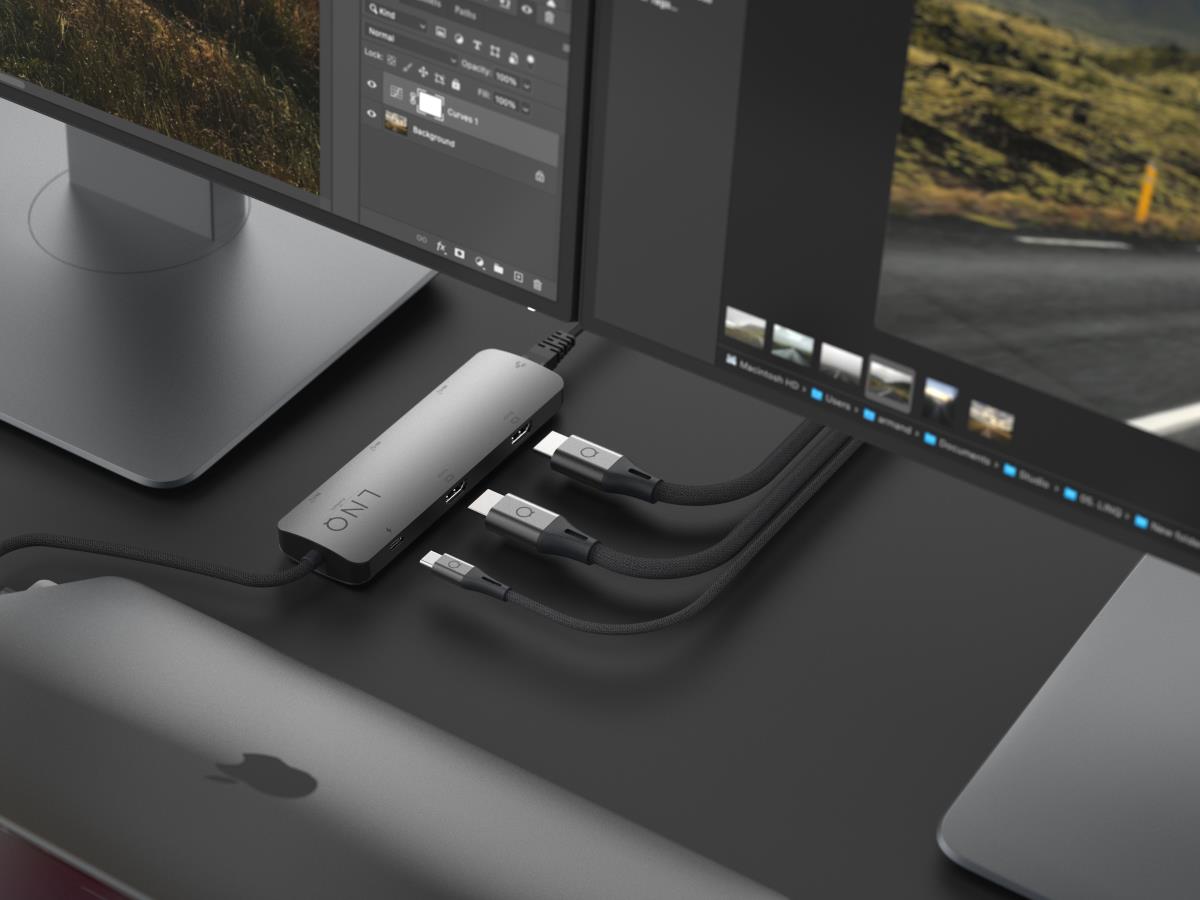

POWERFUL FEATURES Use the LINQ 7in2-D2 Pro to connect dual external 4K displays for workflow efficiency and better viewing. For connecting peripherals to your Mac. LINQ turns the dual USB-C ports into a Multiport expansion solution without compromises on expanded features. OTG and PLUG&PLAY Full OTG and Plug&Play connectivity includes USB-A and Type-C data connections, as well as dual HDMI and Gigabit Ethernet. OTG allows rapid and reliable connectivity where needed to your mobile platform. Connect a keyboard, mouse, or memory stick. Print a document, or just kick back and relax. Connect a USB stick and watch your favorite photos, movies, or series on a 4K screen! with HDMI & LINQ connected to your Macbook. No longer choppy wifi connections. Stream 4K movies via Gigabit Ethernet! All LINQ products support Type-C Power Delivery (PD) charging up to 100W. The HDMI output supports both audio and video, with display resolutions up to 4K@60Hz (3840*2160) and is downwards compatible with Full HD 1080P, 720P etc. The USB Data ports provide Super Speed+ connections, both USB-C and USB-A ports are USB 3.2 Gen2 (10Gbps) compliant. Thunderbolt 3 compatible.

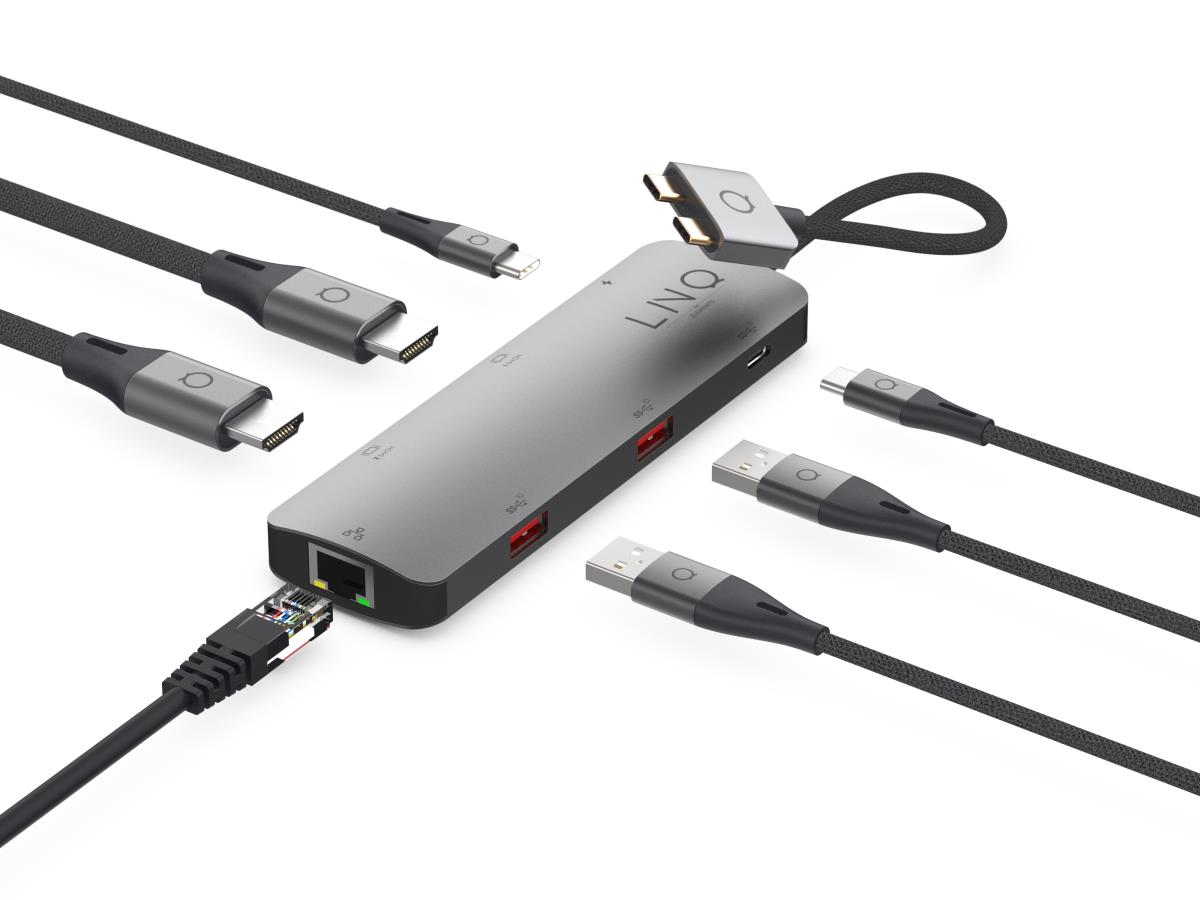

Ports & interfaces

Host interface

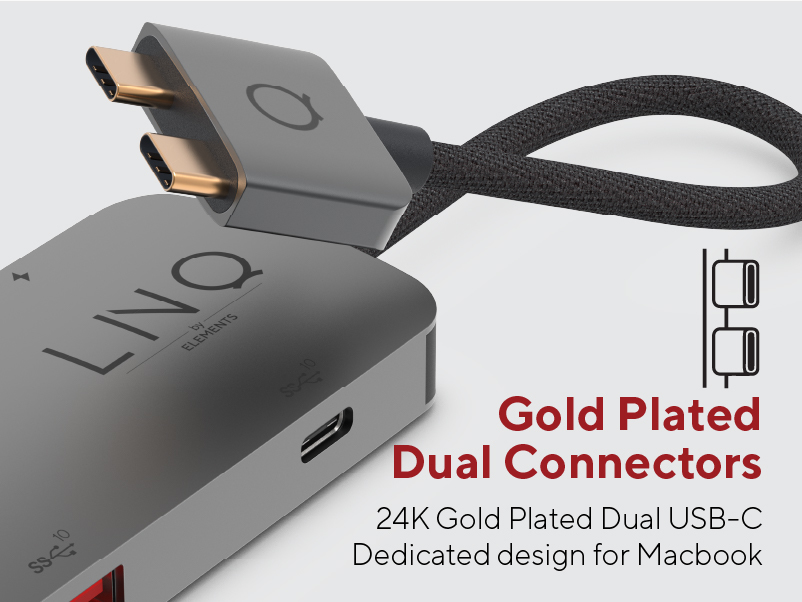

2 x USB 3.2 Gen 2 (3.1 Gen 2) Type-C

Hub interfaces

HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB On-The-Go support

Y

HDMI ports quantity

2

Maximum resolution (HDMI)

3840 x 2160 pixels

Ports quantity

7

Ethernet LAN (RJ-45) ports

1

Features

Data transfer rate

10000 Mbit/s

Maximum refresh rate

60 Hz

Product colour

Black, Grey

Housing material

Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

USB Power Delivery

Y

USB Power Delivery revision

3.0

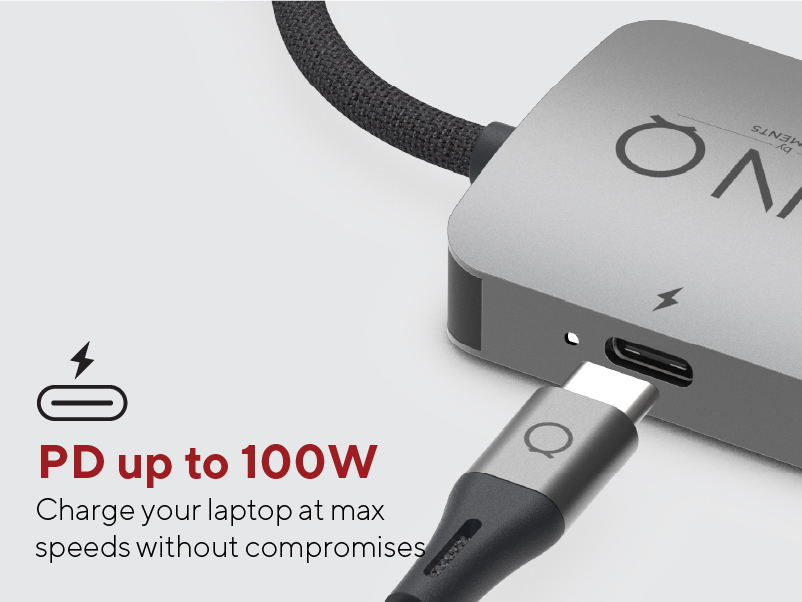

USB Power Delivery up to

100 W

HD type

4K Ultra HD

Country of origin

China

Network

Ethernet interface type

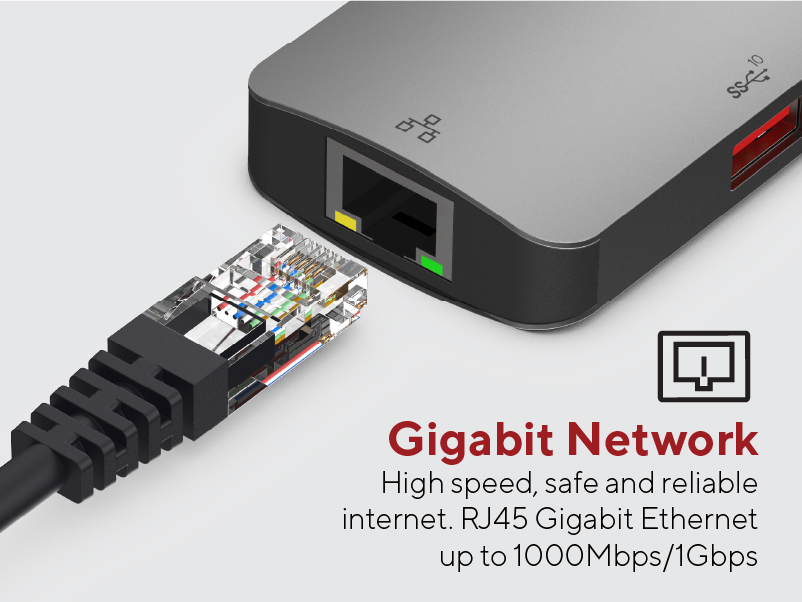

Gigabit Ethernet

Ethernet LAN data rates

100,1000 Mbit/s

Power

Power supply type

USB

System requirements

Windows operating systems supported

Windows 7 Ultimate x64,Windows 10,Windows 7 x64,Windows 10 Education,Windows 8,Windows 10 Education x64,Windows 7,Windows 8 Enterprise,Windows 10 Enterprise,Windows 7 Enterprise,Windows 8 Enterprise x64,Windows 10 Enterprise x64,Windows 7 Enterprise x64,Windows 8 Pro,Windows 10 Home,Windows 7 Home Basic,Windows 8 Pro x64,Windows 10 Home x64,Windows 7 Home Basic x64,Windows 8 x64,Windows 10 IOT Core,Windows 7 Home Premium,Windows 10 IoT Enterprise,Windows 7 Home Premium x64,Windows 10 Pro,Windows 7 Professional,Windows 10 Pro x64,Windows 7 Professional x64,Windows 10 x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate

Mac operating systems supported

Mac OS X 10.13 High Sierra, Mac OS X 11.0 Big Sur, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.10 Yosemite, Mac OS X 10.15.3 Catalina, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra

Weight & dimensions

Width

54 mm

Depth

150 mm

Height

17 mm

Weight

107 g

Packaging data

Quantity per pack

1 pc(s)

Package width

80 mm

Package depth

190 mm

Package height

215 mm

Package weight

170 g

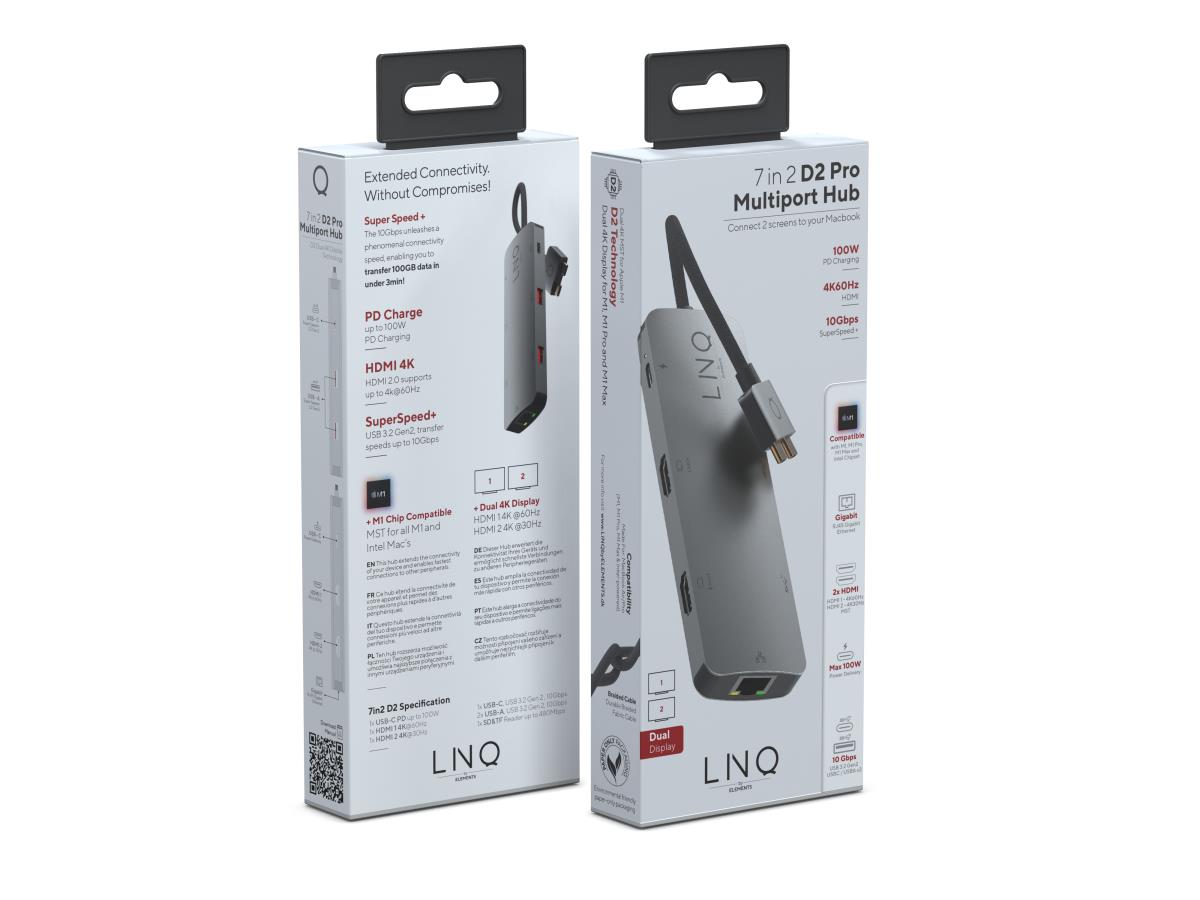

Packaging content

Manual

Y

Logistics data

Master (outer) case width

305 mm

Master (outer) case length

260 mm

Master (outer) case height

480 mm

Master (outer) case gross weight

6.35 kg

Products per master (outer) case

50 pc(s)
