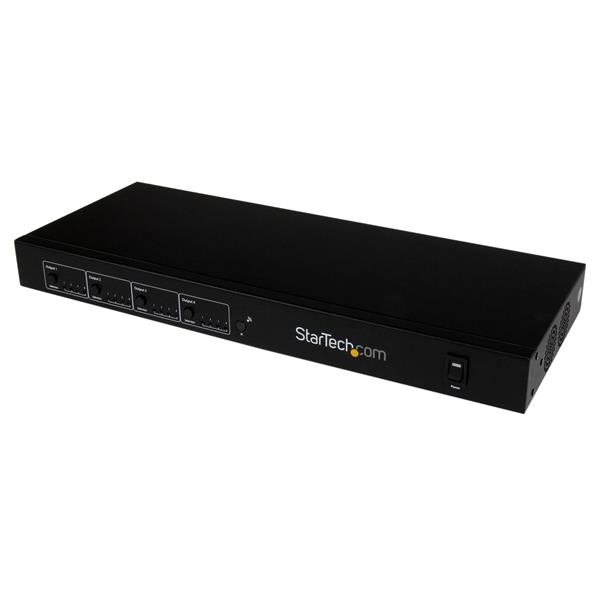

Hdmi Over Cat5 Extender W/ 4x4 Matrix Switcher 70m 4k/1080p

Introduction

This HDBaseT HDMI Matrix Switch and Cat5 extender is an all-in-one digital signage solution that enables you to extend four distinct HDMI audio/video sources up to 230ft (70m), to four remote displays using STHDBTRX receiver units (sold separately). Matrix switching allows each of the remote displays to output and switch between any of the video sources.

What is HDBaseT?
HDBaseT is a standardized, zero latency, video distribution technology that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.

Simplify your setup
The switch extends HDMI using standard Cat5e or Cat6 Ethernet cable with RJ45 connectors, allowing you to use your existing cabling infrastructure, with no added cost in specialized cabling or connectors. Plus, because the HDMI extender also allows for matrix switching in one easy-to-use and clutter-free device, it eliminates the expense and hassle of running multiple devices.

Extend more with HDBaseT

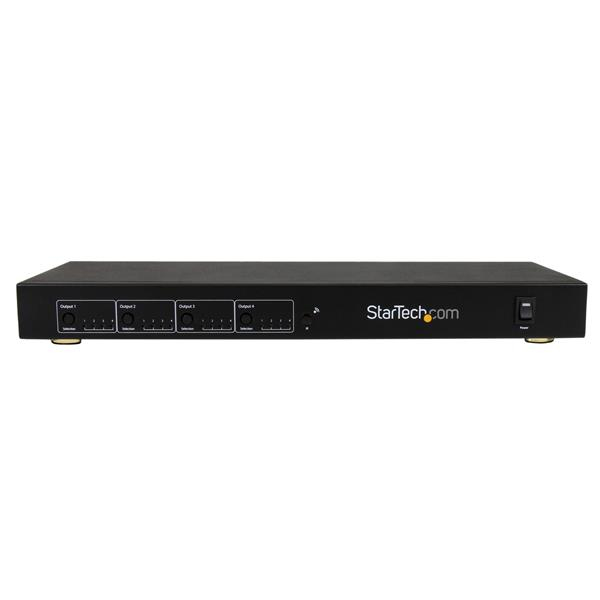

For complete end-to-end control the switch can extend Infrared using the IR extender and receiver cables included with the STHDBTRX receiver units (sold separately). For local operation, the HDMI switch also includes a remote control, and easy-to-use front panel buttons that allow you to toggle between video sources.

High-Definition picture quality from an impressive distance
Ideal for High-Definition applications, the matrix switch supports 1920x1200/1080p video resolutions and digital audio. Plus, built-in EDID monitor emulation ensures native resolution and maximum compatibility with your display or projector, for a convenient plug-and-play installation.

The ST424HDBT is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Cost-saving installation, with non-proprietary Cat5e/Cat6 cabling
- Eliminate clutter and reduce failure points using an all-in-one HDMI switch, splitter, and extender, with mounting brackets included
- Hassle-free operation with Serial, Ethernet, or IR control

Features

Type

AV transmitter

Maximum resolution

1920 x 1200 pixels

Cable types supported

Cat5,Cat6

Maximum transfer distance

70 m

Audio system

Multichannel

Audio output channels

7.1 channels

LED indicators

LAN, Link, Power

Supported video modes

720p,1080p

Remote control type

IR

Material

Aluminium

Rack mounting

Y

HDCP & EDID bypass

Y

Product colour

Black

Certification

CE, FCC

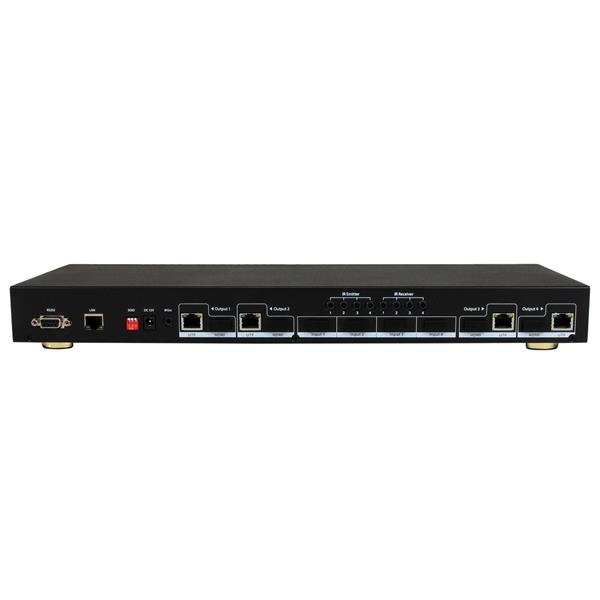

Ports & interfaces

RJ-45 input ports

1

RJ-45 output ports

5

HDMI in

4

Number of HDMI outputs

4

Serial ports quantity

1

Serial interface type

RS-232

DC-in jack

Y

Power

AC input voltage

100-240 V

Operating voltage

12 V

Input current

1.8 A

Output current

5 A

Power plug type

Type M

Operational conditions

Operating temperature (T-T)

-5 - 35 °C

Storage temperature (T-T)

-5 - 35 °C

Operating relative humidity (H-H)

5 - 90%

Weight & dimensions

Dimensions (WxDxH)

170 x 440 x 50 mm

Weight

2.3 kg

Packaging data

Package dimensions (WxDxH)

325 x 525 x 122 mm

Package width

325 mm

Package depth

525 mm

Package height

122 mm

Package weight

4.17 kg

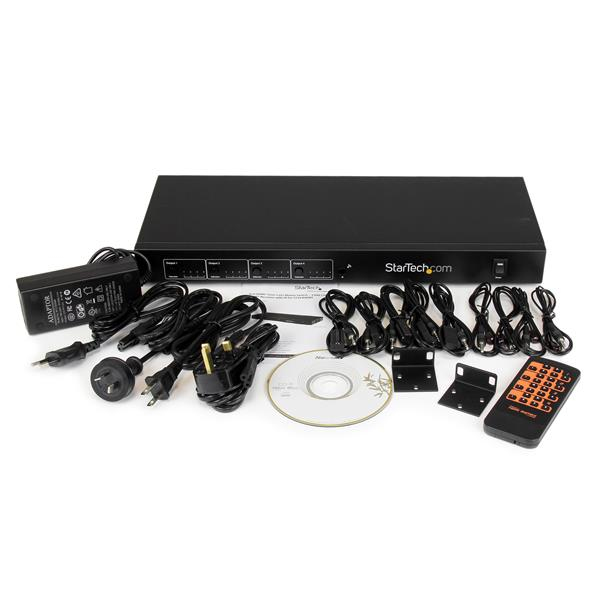

Packaging content

AC adapter included

Y

Quick start guide

Y

Remote control included

Y

Mounting brackets included

Y

Technical details

Sustainability certificates

RoHS
