STARTECH.COM

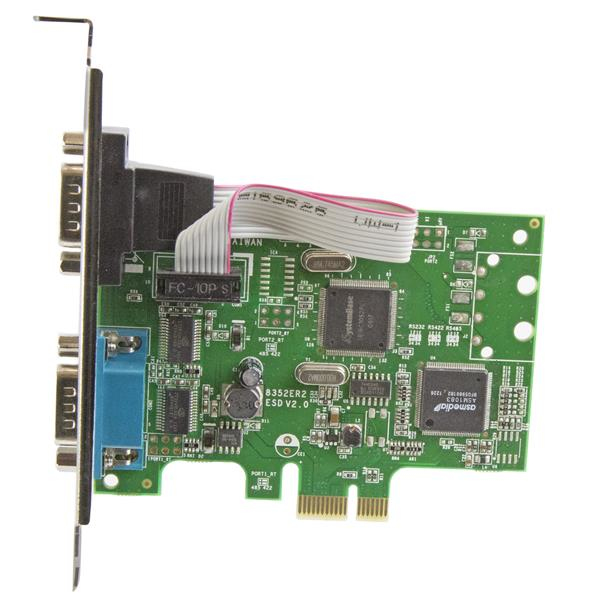

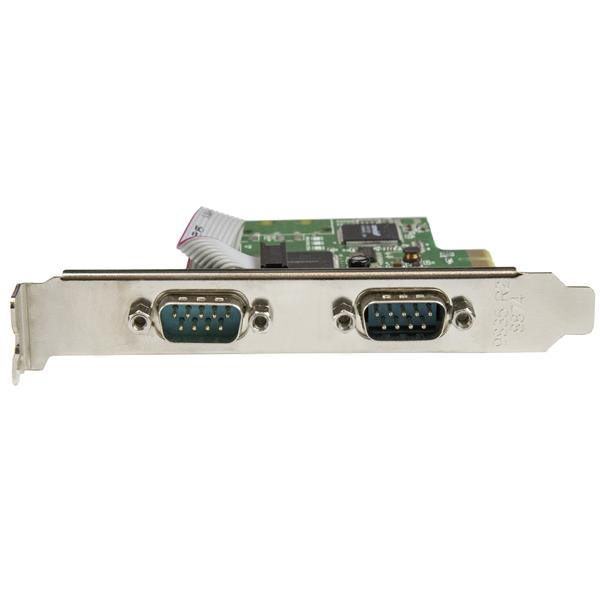

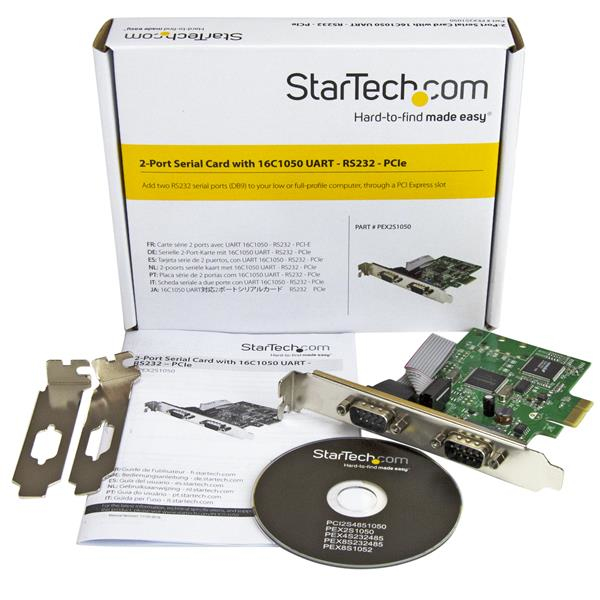

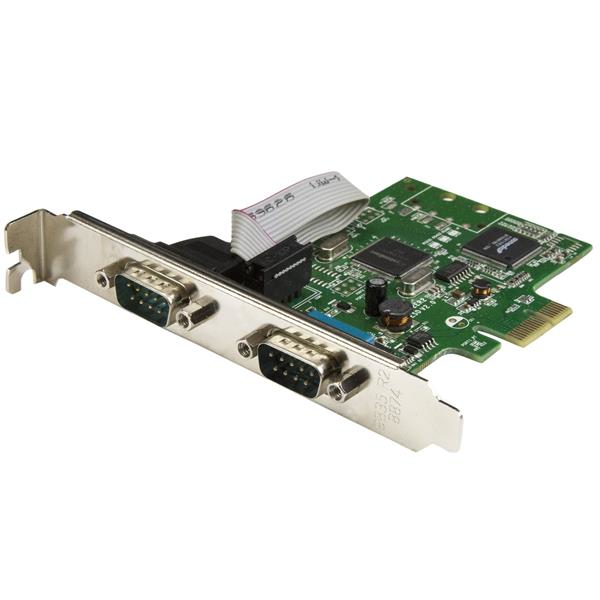

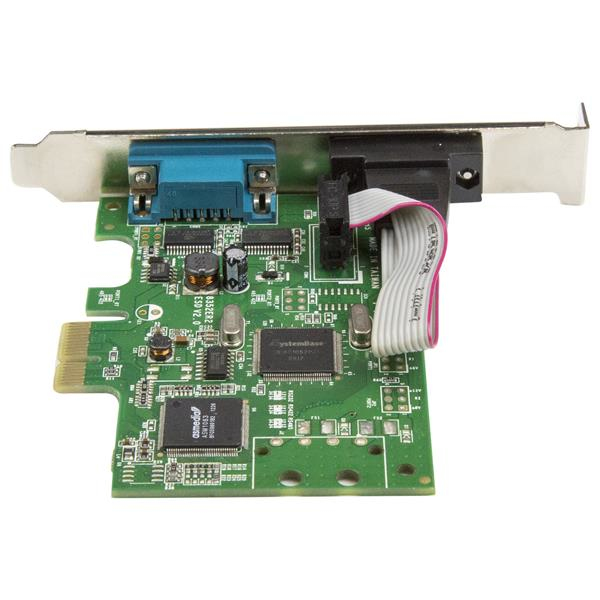

Serial Card Rs232 - 2-port W/ 16c1050 Uart - Pci-e

Serial Card Rs232 - 2-port W/ 16c1050 Uart - Pci-e

Part Number:
PEX2S1050
Language:
US
 Without VATWith VAT
Base Price:€63,50€76,84
Total:€63,50€76,84

Introduction

Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slotThis PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.Convenient system upgrades through PCIeThe PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.High-performance serial communicationThe PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.Easy installationThe serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support.

Ports & interfaces

Host interface

PCIe

Output interface

Serial

Expansion card form factor

Full-height / Low-profile

Serial ports quantity

2

Serial interface type

RS-232

Design

Internal

Y

Certification

CE, FCC, Microsoft WHQL

Features

Chipset

SystemBase - SB16C1052PCI

Baud rate

460.8 Kbit/s

FIFO (First In, First Out)

256 B

Data bits

5,6,7,8

Full duplex

Y

Flow control support

Y

Operational conditions

Operating temperature (T-T)

-10 - 80 °C

Storage temperature (T-T)

-20 - 100 °C

Operating relative humidity (H-H)

5 - 85%

System requirements

Windows operating systems supported

Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95,Windows 98SE,Windows ME,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64

Server operating systems supported

Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019

Technical details

Sustainability certificates

RoHS

Weight & dimensions

Width

120 mm

Depth

103 mm

Height

20 mm

Weight

61 g

Packaging data

Mounting brackets included

Y

Drivers included

Y

Quick installation guide

Y

Package width

143 mm

Package depth

174 mm

Package height

32 mm

Package weight

149 g

Logistics data

Products per master (outer) case

75 pc(s)

Master (outer) case width

356 mm

Master (outer) case length

691 mm

Master (outer) case height

319 mm
