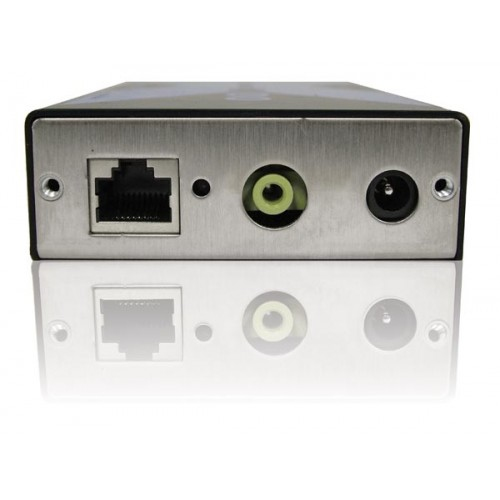

Adderlink X100-USB/p KVM Extender USB & Video

Adderlink X100-USB/p KVM Extender USB & Video

Part Number:
 Without VATWith VAT
Base Price:€347,00€419,87

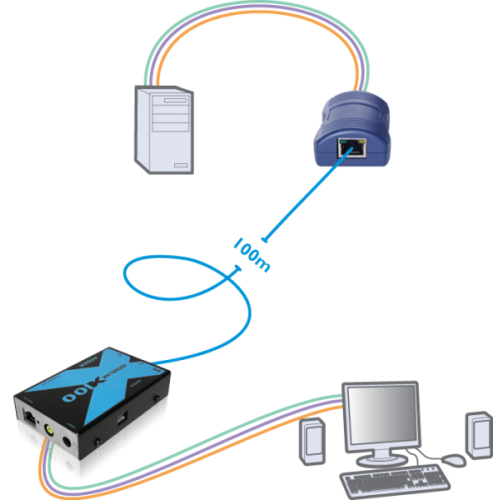

ADDERLink X100s have been designed for use in applications where keyboard, mouse, high quality video and audio needs to be extended no more than 100m (330ft) over category 5 or higher UTP cable.
The ADDERLink X100s provide industry-leading video clarity, audio quality and compatibility.
Variety of models available
To suit the maximum possible number of applications the X-100 is available in a number of models
PS/2, and Video (X-100-PS2/P)
PS/2, video and audio (X-100A-PS2/P)
USB and video (X-100-USB/P)
USB, video and audio (X-100A-USB/P)
Video Performance
Industry leading resolutions of 1600 x 1200 are achievable up to 100m (330ft), 1900 x 1440 up to 50m (165ft).
Video Compensation
The ADDERLink X-100 applies signal compensation that allows for smooth and fine adjustments providing great video quality up to 100m.
Emulated DDC
Unless an extender actively supports DDC some well known high performance video cards cannot be used at high resolutions. The ADDERLink X-100s fully support DDC.
USB Emulation
When using an X-100 pair to extend a CPU with a USB keyboard and mouse interface, it is ensured that the keyboard and mouse are continually emulated for maximum availability and essential functionality such,
as country code reporting for Sun CPUs.
Brightness control
The ADDERLink X-100s offer their own brightness correction to ensure images are crisp, clear and bright.
Optional digital stereo audio delivers high fidelity audio for speakers.
Video Resolutions
1600 x 1200 at distances up to 100m/330ft,1900 x 1440 at distances up to 50m/165ft
Extension Distance
Up to 100m/330ft using CATx cable (x=5,5e,6,7)
Devices Supported
Supports any computer with PS/2 or USB style keyboard and mice, flat-screen and CRT style monitors with standard HD-15 video connectors and optional audio through 3.5mm audio jack.
