ADDER

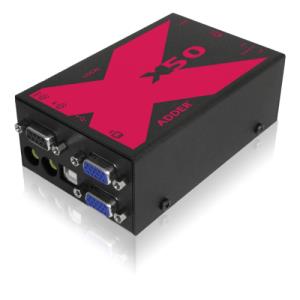

Adderlink X50 Multiscreen

Adderlink X50 Multiscreen

Part Number:
X50-MS2
Language:
UK
 Without VATWith VAT
Base Price:€765,00€925,65
Total:€765,00€925,65

Introduction

Fully featured, fully transparent low/full speed USB, high quality video and 44.1kHz digital stereo audio extender over a single CATx cable up to 50m.

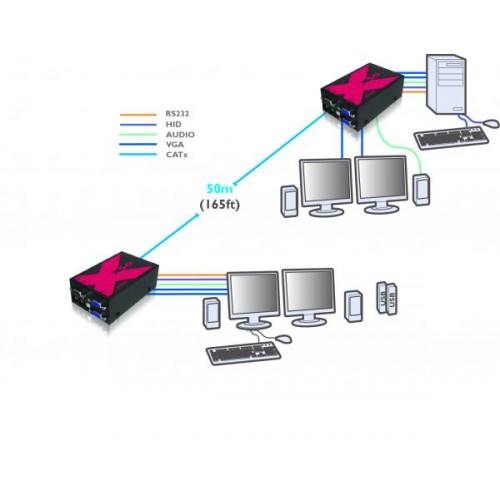

ADDERLink X50shave been designed for use in applications where computers can have their USB peripherals including keyboards and mice, high quality video and audio control extended up to 50m (150 ft.) across CAT5 or higher UTP cable.
TheADDERLink X50-MS2provides sharp, bright and ultra high-resolution video over a VGA interface and ensures total USB compatibility regardless of the computer being controlled or the peripheral being extended. Beyond the single X50, the X50-MS2 also features transparent RS232 extension, broadening the application into many additional areas including Industrial control.

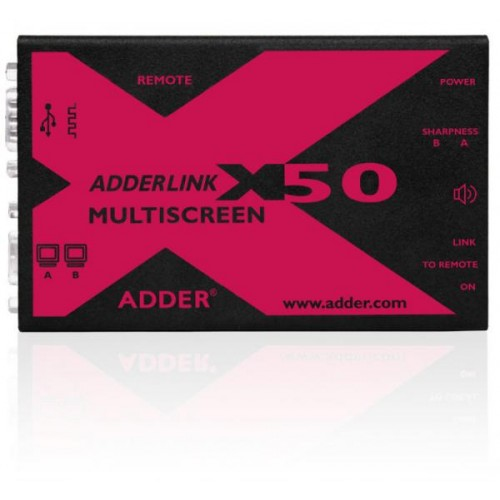

ADDERLink X50 MultiScreen
TheADDERLink X50MultiScreenadds a second video and transparent, high speed RS232 up to baud rates of 115,200. This extra functionality adds to the diverse range of solutions for which theADDERLink X50can be utilised including the extension of computers with dual monitors and allow it to be used in touch screen and interactive kiosk applications.
Fully transparent low/full speed USB
Utilising a unique method of USB communication, theADDERLink X50delivers the highest possible levels of USB compatibility. With an integrated 4 port hub the X50 supports all USB 1.1 and 2.0 low/full speed devices.
Video performance
Crisp, clear and industry leading video quality at very high resolutions of 1920 x 1200 to 50m (150 ft.)
Video compensation
The ADDERLink X50 allows for a great range of very smooth and fine adjustments enabling the user to adjust the video picture to their exact preference.
True DDC Emulation
Unless an extender actively supports DDC some high performance video cards cannot be used at high resolutions. TheADDERLink X50fully supports 2-page DDC ensuring all possible resolutions are supported.
Fully platform independent
As theADDERLink X50supports fully transparent USB connections it is able to support all common hardware platforms including PC, Sun and MAC and their associated peripherals.
Digital audio
ADDER's unique digital transmission of audio signals means theADDERLink X50delivers clickless, 44.1kHz CD quality, stereo audio without the need for an additional CATx cable.
Dual Access
For local control of extended computers theADDERLink X50provides both a local video and audio output at the transmitter unit. (USB devices can be plugged directly into the computer).
Extended common mode input range
To ensure full operation in all environments and avoid problems such as screen blanking in industrial environments caused for example by large electrical equipment switching, theADDERLink X50implements a special termination system that allows the common mode range to be extended.
High density rack mount option
Being part of ADDER's X series range of KVM extenders, theADDERLink X50units can be mounted into a chassis that will allow 16 (X50) or 8 (X50-MS) units to be housed in 2U of rack space.

Technical details

Harmonized System (HS) code

84733080
