ANTEC

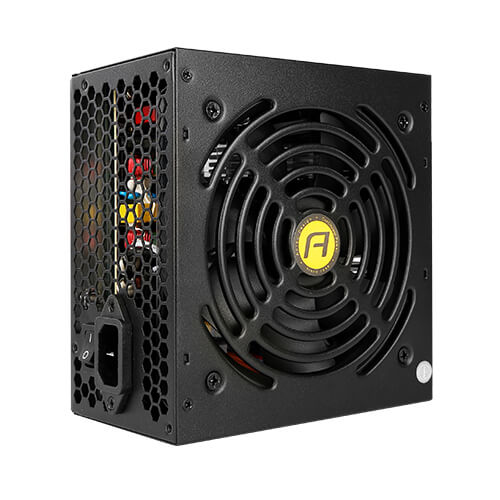

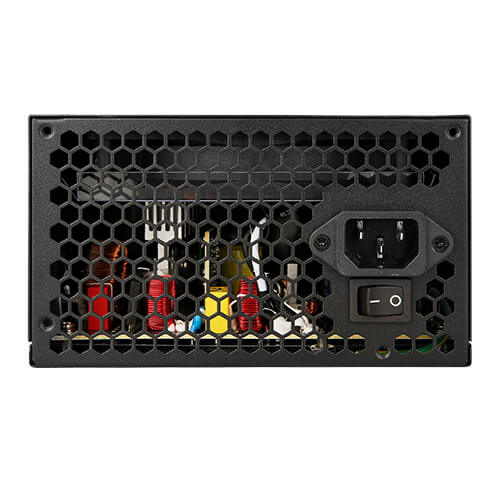

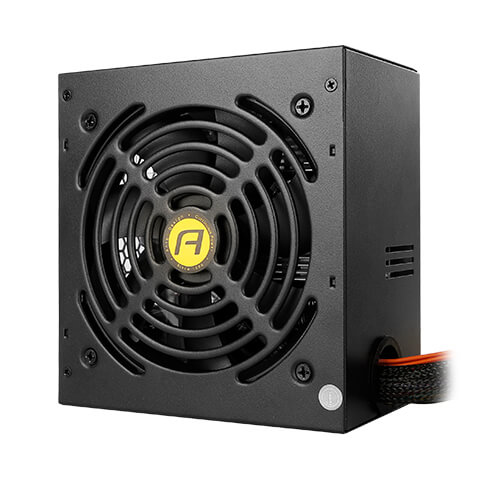

Vp550p Plus-ec 80+ Psu 550 Watts 80 Plus.

Vp550p Plus-ec 80+ Psu 550 Watts 80 Plus.

Part Number:
0-761345-11670-1
Language:
UK
 Without VATWith VAT
Base Price:€57,31€69,34
Total:€57,31€69,34

Introduction

The new generation of VP650P PLUS is crafted for quality, performance and incredible value.
This entry-level solution is rated from 500W to 700W, saving energy through its high efficiency of up to 85% efficient and is 80 PLUS 230V Standard certified.

Delivering up to 85% efficiency,
the VP P PLUS series utilizes active PFC, and provides efficiency during max and low loads-living up to the performance standards that we are known for.

We stand by the quality and safety of the VP_P PLUS Power Supplies, offering a 3-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.

The 120 mm Silent Fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of operation.
Features a Thermal Manager, an advanced low voltage fan control for optimal heat & noise management and will allow your PSU to stay at an optimal temperature.

Power

Total power

550 W

AC input voltage

200 - 240 V

AC input frequency

50/60 Hz

Input current

5 A

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

120 W

Combined power (+12V)

600 W

Combined power (+5V)

120 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

20 A

Max output current (+12V)

50 A

Max output current (+5V)

17 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

2.5 A

Efficiency

85%

Power Good signal delay range

100 - 500 ms

Performance

80 PLUS certification

80 PLUS

Purpose

PC

Design

Product colour

Black

Other features

Voltage tolerance

10%

Harmonized System (HS) code

84733020
