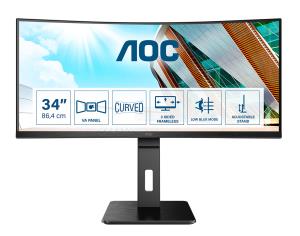

Curved Monitor - CU34P2A - 34in - 3440x1440 - 1ms 100hz

Introduction

Productivity, connectivity, and comfort in a curved 1500R 34” ultra wide QHD display
Professional users looking for a true productivity ally need look no further than the CU34P2A. This model is equipped with a curved 1500R 34” VA/3FL screen with 21:9 ultra wide QHD resolution and 300 cd/m2 brightness. Its rich, innovative features include wide viewing angles of 178°/178°, HDMI and DP compatibility, a USB 3.2 hub, and auto source input.

Monitor Type

TV / Monitor

Monitor

Model Specifications

Model

CU34P2A

Display Type

LCD

Screen Size

34"

Cabinet Colour

Black

Backlighting Technology

LED

Display

Screen Technology

VA

Display Area

797.22(H) mm x 333.72(V) mm

Pixel Pitch

0.2745 mm

Response Time

1 ms

Viewing Angle

178º

Screen Shape

Curved

LED backlight

Yes

Response time measurement type

GTG (Gray to Gray)

Response time (MPRT)

1 ms

Pixel density

0 ppi

Touchscreen

No

Anti-glare screen

Yes

Display diagonal (metric)

86.36 cm

Surface hardness

3H

Display diagonal

86.4 cm (34")

Display brightness (typical)

300 cd/m²

Display resolution

3440 x 1440 pixels

Native aspect ratio

21:9

Response time

1 ms

HD type

Quad HD

Display technology

LED

Backlight type

W-LED

Display surface

Matt

Screen shape

Curved

Screen curvature rating

1500R

Screen curvature

150 cm

Supported graphics resolutions

1920 x 1080 (HD 1080), 2560 x 1440, 3440 x 1440

Supported video modes

1080p, 1440p

Aspect ratio

21:9

Contrast ratio (typical)

3000:1

Contrast ratio (dynamic)

50000000:1

Maximum refresh rate

100 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.7 million colours

Panel type

VA

Pixel pitch

0.2745 x 0.2745 mm

Viewable size, horizontal

79.7 cm

Viewable size, vertical

33.4 cm

Colour depth

8 bit

RGB colour space

sRGB

sRGB coverage (typical)

120%

NTSC coverage (typical)

85%

Adobe RGB coverage

89%

Connectivity

Audio

Line in : Yes

Display Port

1 x DisplayPort 1.2

HDMI

2 x HDMI 2.0

USB

4 x USB 3.2 (Gen1)


Brightness

300 cd/m2

Aspect Ratio

21:9

Contrast Ratio

Dynamic : 50M:1
Static : 3000:1

Colours

16.7 Million

Maximum Resolution

3440 x 1440

Multimedia

Multimedia Capability

Yes

Audio In/Out

Headphone out (3,5mm) : Yes

Speakers

2 x Speakers

Built-in microphone

No

Built-in speaker(s)

Yes

Number of speakers

2

RMS rated power

3 W

Built-in camera

No

Power

Power Consumption

On : 55 watt
Standby : 0.5 watt

Power supply type

Internal

Energy efficiency class (SDR)

G

Energy efficiency class (HDR)

G

Energy consumption (SDR) per 1000 hours

40 kWh

Energy consumption (HDR) per 1000 hours

42 kWh

Power consumption (typical)

55 W

Power consumption (standby)

0.5 W

Power consumption (off)

0.3 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

External power adapter

No

Energy efficiency scale

A to G

Dimensions

Height

611.53 mm

Width

808.34 mm

Depth

275.13 mm

Weight

9.8 kg

Ergonomics

Height adjustment

150mm

Supported Mounting

100 x 100 mm

Swivel angle range

180 °

Tilt angle

5.5° ±1° ~ 22° ±1.5° °

Panel mounting interface

100 x 100 mm

Cable lock slot

Yes

Cable lock slot type

Kensington

VESA mounting

Yes

Height adjustment

Yes

Height adjustment

15 cm

Pivot

No

Swivelling

Yes

Swivel angle range

-180 - 180°

Tiltable

Yes

Tilt angle range

-5 - 23°

On Screen Display (OSD)

Yes

On Screen Display (OSD) languages

Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian

Number of OSD languages

16

Plug and Play

Yes

Green Certificates

Energy Efficiency Class

C

Energy Star Certified

Yes

Green Compliant

Yes

TCO

TCO 8

Performance

Compatibility

VESA-P2

Fast charging

Yes

NVIDIA G-SYNC

No

AMD FreeSync

No

VESA Adaptive Sync support

Yes

Flicker-free technology

Yes

Low Blue Light technology

Yes

Sustainability

Doesn't contain

Mercury, PVC/BFR

European Product Registry for Energy Labelling (EPREL) code

399167

Sustainability certificates

EPEAT Silver

Other features

Warranty period

3 year(s)

Light effects

No

Power cable length

1.8 m

Exterior finish type

Textured

Recyclable packaging material

100%

Logistics data

Harmonized System (HS) code

85285210

Design

Market positioning

Business

Product colour

Black

Frameless design

Yes

Front bezel colour

Black

Detachable stand

Yes

Feet colour

Black

Heavy metals free

Hg (mercury)

Certification

True

Ports & interfaces

Built-in USB hub

Yes

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB Type-A downstream ports quantity

4

DVI port

No

HDMI

Yes

HDMI ports quantity

2

HDMI version

2.0

DisplayPorts quantity

1

DisplayPort version

1.2

Audio input

Yes

Headphone out

Yes

Headphone outputs

1

Headphone connectivity

3.5 mm

Microphone in

Yes

DC-in jack

Yes

Weight & dimensions

Width (with stand)

808.3 mm

Depth (with stand)

275.1 mm

Height (with stand)

611.5 mm

Weight (with stand)

9.8 kg

Width (without stand)

808.3 mm

Depth (without stand)

100.1 mm

Height (without stand)

367.4 mm

Packaging data

Stand included

Yes

Cables included

AC, DisplayPort, HDMI

DisplayPort cable length

1.8 m

HDMI cable length

1.8 m

Package width

903 mm

Package depth

250 mm

Package height

527 mm

Package weight

12.7 kg

Package type

Box
