Power Saving Back UPS Es 8 Outlet 700va 230v Bs 1363

Introduction

- Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- 10/100 BaseT Connection - This reduces a major risk of downtime by providing detailed reports on battery age, load, health, etc facilitating the timely replacement of UPS batteries.
- Battery-protected and surge-only outlets - Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Dataline Surge Protection - Provides protection of connected equipment from power surges on the data lines.
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Features

Output power capacity

0.7 kVA

Output power

405 W

Input frequency

47/63 Hz

Surge energy rating

310 J

Battery

Typical backup time at full load

3.5 min

Typical backup time at half load

13.3 min

Battery recharge time

16 h

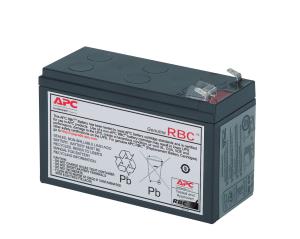

Replacement battery cartridge

RBC17

Design

Cable length

1.83 m

Product colour

Black

Certification

UL, FCC, CE, C-Tick, RoHS

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 9000 m

Weight & dimensions

Weight

6.93 kg

Package weight

7.84 kg

Other features

Output connections

8 x BS 1363

Dimensions (WxDxH)

224 x 311 x 89 mm

Nominal output voltage

230 V

Nominal input voltage

230 V

Package dimensions (WxDxH)

279 x 400 x 127 mm
