APC

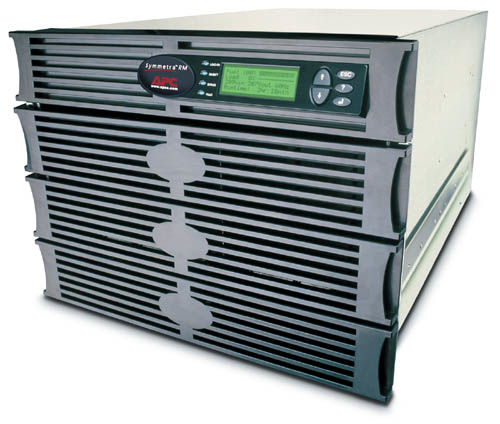

Symmetra - Rm Power Array Frame

Symmetra - Rm Power Array Frame

Part Number:
SYHF6KI
Language:
UK
 Without VATWith VAT
Base Price:€3.777,30€4.570,53
Total:€3.777,30€4.570,53

Introduction

Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Modular, Scalable, Redundant Architecture future proof initial investment, improves equipment availability, and simplifies maintenance.
Symmetra LX’s redundant N+1 architecture enables the unit to withstand a failures of an intelligence module, battery or power module. Modules are easily replaceable in the field. Customers can add additional power modules or batteries after initial equipment purchase to accommodate loads of up to 16 kVA.

Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Peace of mind that comes with complete equipment compatibility and reliability of a market leader.
Safety agency tested and approved means that you can deploy Symmetra with confidence that they meet or exceed the industry’s most rigorous standards.

Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Features

UPS topology

Double-conversion (Online)

Output power capacity

6 kVA

Output power

4200 W

Input operation voltage (min)

155 V

Input operation voltage (max)

276 V

Input frequency

50 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Output frequency regulation

47 - 53 Hz

Efficiency

89%

Ports & interfaces

RS-232 ports

1

Ethernet LAN (RJ-45) ports

1

Emergency Power Off (EPO) connector

Y

SmartSlot

Y

Battery

Battery technology

Sealed Lead Acid (VRLA)

Number of batteries supported

3

Battery life (max)

5 year(s)

Battery recharge time

4 h

Design

Form factor

Tower

Rack capacity

8U

Product colour

Black

Display type

LCD

Certification

C-tick, CE, EN 50091-2, EN 60950, IRAM, VDE

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 15000 m

Weight & dimensions

Width

483 mm

Depth

730 mm

Height

356 mm

Weight

133.6 kg

Package width

584 mm

Package depth

787 mm

Package height

508 mm

Other features

Battery type

SYBT2
