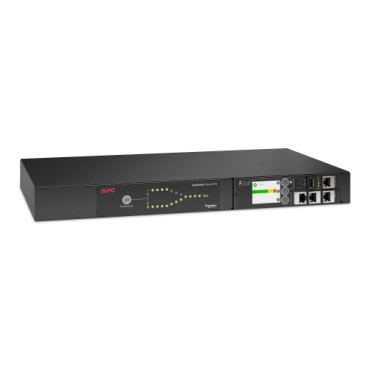

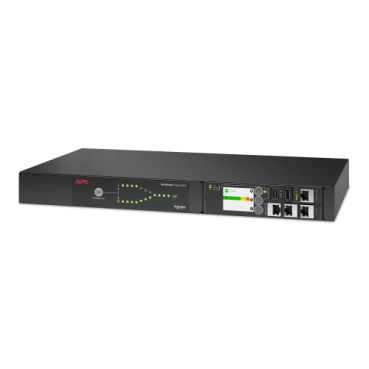

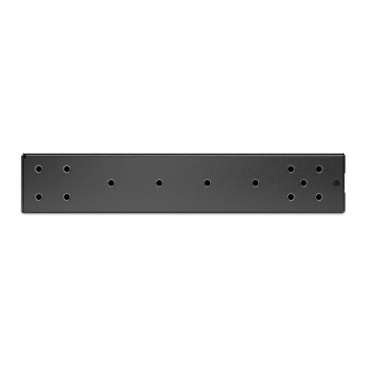

Rack ATS, 1U, 16A, 230V, 2 IEC309 In, 1 IEC309 Out, 50/60Hz

Power

Input operation voltage (min)

230 V

Input operation voltage (max)

230 V

AC input frequency

50/60 Hz

Input current

16 A

Output operation voltage (min)

230 V

Design

Form factor

Rackmount

Rack capacity

1U

Product colour

Black

Ports & interfaces

AC outlets quantity

1 AC outlet(s)

AC outlet types

IEC 60309

Operational conditions

Operating temperature (T-T)

-5 - 45 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

432 mm

Depth

236 mm

Height

44 mm

Weight

4.21 kg
