APC

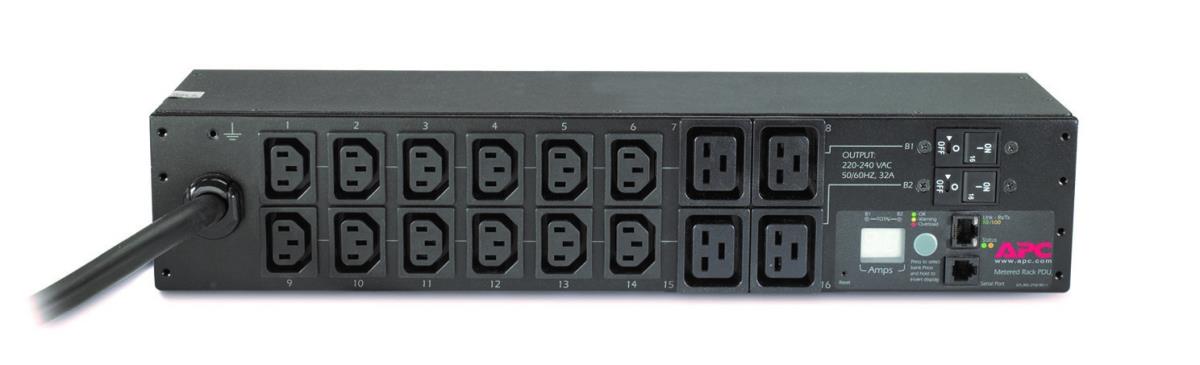

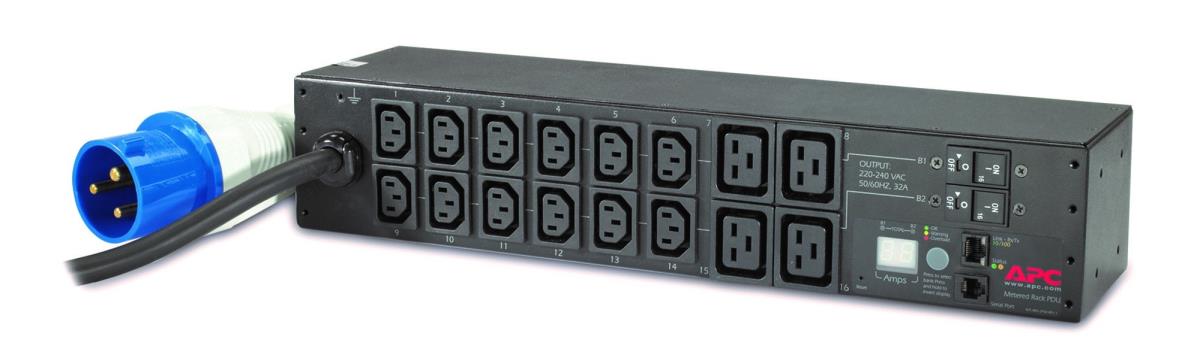

Rack PDU, Metered, 2U, 32A, 230V, (12) C13 & (4) C19

Rack PDU, Metered, 2U, 32A, 230V, (12) C13 & (4) C19

Part Number:
AP7822B
Language:
UK
 Without VATWith VAT
Base Price:€1.154,59€1.397,05
Recupel:+ €0,07+ €0,08
Total:€1.154,66€1.397,14

Introduction

Resettable circuit breakers
Enables a quick recovery from overload events.

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Design

PDU types

Metered

Type

Single-phase

Rack capacity

2U

Mounting

Horizontal/Vertical

Product colour

Black

On/off switch

Y

Ports & interfaces

AC outlets quantity

16 AC outlet(s)

Power plug

IEC309

AC outlet types

C13 coupler, C19 coupler

Input connection type

IEC 309 32A 2P+E

Output connections

12 x C13 4 x C19

Features

LED indicators

Y

Cable length

3.66 m

Certification

C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI

Management features

Monitoring

Current, Power, Voltage

Power

Nominal input voltage

208-230 V

AC input frequency

50 - 60 Hz

Maximum current

32 A

Load capacity

7680 VA

Maximum input current per phase

32 A

Maximum total current draw per phase

32 A

Power protection features

Overload

Maximum power

7680 W

Weight & dimensions

Dimensions (WxDxH)

444 x 112 x 88 mm

Weight

3.36 kg

Packaging data

Package dimensions (WxDxH)

508 x 368 x 140 mm

Package weight

5.41 kg

Operational conditions

Operating temperature (T-T)

-5 - 45 C

Storage temperature (T-T)

-25 - 65 C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Technical details

Sustainability certificates

RoHS
