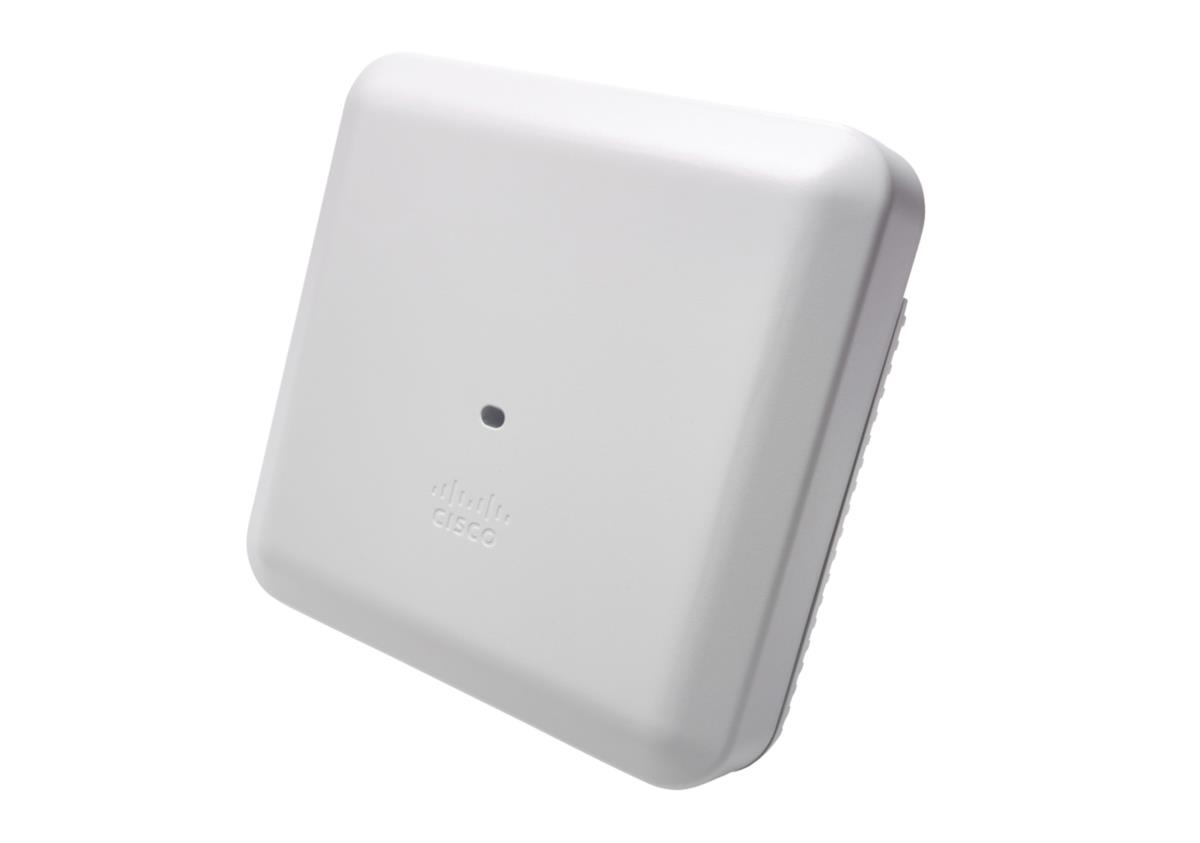

Aironet 2802 Access Point 802.11ac W2 With Ca 3x4:3 Int Ant 2xgbe E

Introduction

The 2800 Series is packed with the features and capabilities that have made Cisco the industry leader, at a price point that is ideal for managing wireless growth, capacity, and coverage gaps in dense indoor environments. The 2800 Series supports 802.11ac Wave 2, providing a theoretical connection rate of up to 5.2 Gbps-that's roughly 4x the rates offered by today's high-end 802.11ac access points. The boost helps you stay ahead of the performance and bandwidth expectations of today's mobile worker, who usually uses multiple Wi-Fi devices instead of just one.

- 802.11ac Wave 2 support
- Dual 5-GHz radio support
- PoE for simplified integration
- up to 2.6 Gbps per radio

Features

2.4 GHz

Y

5 GHz

Y

Maximum data transfer rate

5200 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Frequency band

2.412 - 2.472, 5.18 - 5.32, 5.5 -5.6, 5.64 - 5.7 GHz

Networking standards

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11n,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3at,IEEE 802.3u

Channels quantity

29 channels

Channel bandwidth

20 MHz

Wi-Fi Multimedia (WMM)/(WME)

Y

Transmitting power

23 dBmW

Security

Security algorithms

802.1x RADIUS,AES,EAP-FAST,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,WPA,WPA2

Remote Authentication Dial-In User Service (RADIUS)

Y

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

Power

Power over Ethernet (PoE)

Y

Power consumption (typical)

30 W

Design

Placement

Ceiling, Wall

Product colour

White

On/off switch

Y

LED indicators

Y

Certification

UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 EN 50155

Antenna

Antenna direction type

Omni-directional

Antenna features

Integrated antenna

Antenna gain level (max)

5 dBi

Performance

Flash memory

256 MB

Internal memory

1024 MB

Operational conditions

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-30 - 70 °C

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 4570 m

Weight & dimensions

Width

220 mm

Depth

220.5 mm

Height

55.2 mm

Weight

1.6 kg
