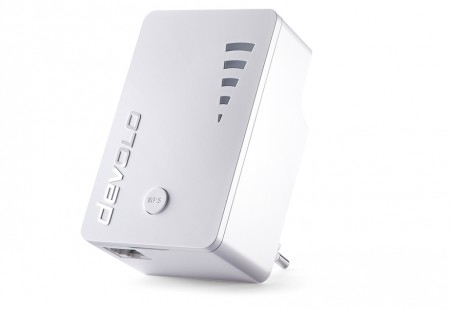

Wi-Fi Repeater AC

Introduction

- Increases the range of an existing WiFi network.
- Integrated gigabit Ethernet LAN port for smart TVs, PCs, game consoles, streaming boxes etc.
- Easy set-up with an integrated WPS button or through a web browser.
- Up to 1200 Mbps with integrated dual-band functionality (2.4 + 5 GHz simultaneously). Furthermore, it uses the fastest WiFi ac technology.
- 5-level signal strength indicator for optimising the position of the devolo WiFi ac Repeater.
- Also alternative use as an access point for creating a new WiFi ac network.
- Compact design and free WiFi app for perfect positioning.

More WiFi in no time! The WiFi ac Repeater from devolo lets you boost your router's WiFi signal to create a stable connection, even in rooms where a connection used to be impossible, and it does this at top-end data rates of up to 1200 Mbps. Enjoy your video calls, streaming films, music and Internet browsing free of interruptions, annoying delays and never-ending progress 'buffer' bars from now on. Setting up the devolo WiFi ac Repeater is as easy as pie. Thanks to its compact design, you can place the WiFi ac Repeater virtually anywhere. Subsequent configuration can be carried out automatically using the integrated WPS button or a web browser. Within just a few minutes, you can vastly improve your WiFi reception-or set up an entirely new WiFi network with ease since the repeater can optionally be used as an access point as well. The strength of the current signal is always displayed by the helpful LED indicator on the repeater. The repeater is also equipped with a gigabit Ethernet port for connecting cable-based end devices, such as smart TVs, PCs, streaming boxes and NAS drives. Take advantage of the flexible possibilities of the devolo WiFi ac Repeater and start enjoying fast WiFi ac speed and gigabit Ethernet wherever you need it. Give your WiFi network the power to easily handle the exciting multimedia possibilities of today and tomorrow.

Data transmission

Maximum data transfer rate

867 Mbit/s

Supported data transfer rates

300, 867

Antenna

Antenna

MIMO

Wireless LAN features

Frequency band

2.4/5 GHz

Modulation

DSSS,OFDM

Indoor range

300m

Network

Ethernet LAN

Y

Networking standards

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x

Auto MDI/MDI-X

Y

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Security

Security algorithms

WPA,WPA2,WPS

WPS push button

Y

Features

Product colour

White

Power

AC input voltage

196-250 V

AC input frequency

50 Hz

Power consumption (typical)

3.6 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage temperature (T-T)

-25 - 70 °C

Certificates

Certification

CE Class B (EU, CH, NO)

Weight & dimensions

Dimensions (WxDxH)

115 x 190 x 81 mm

Weight

240 g
