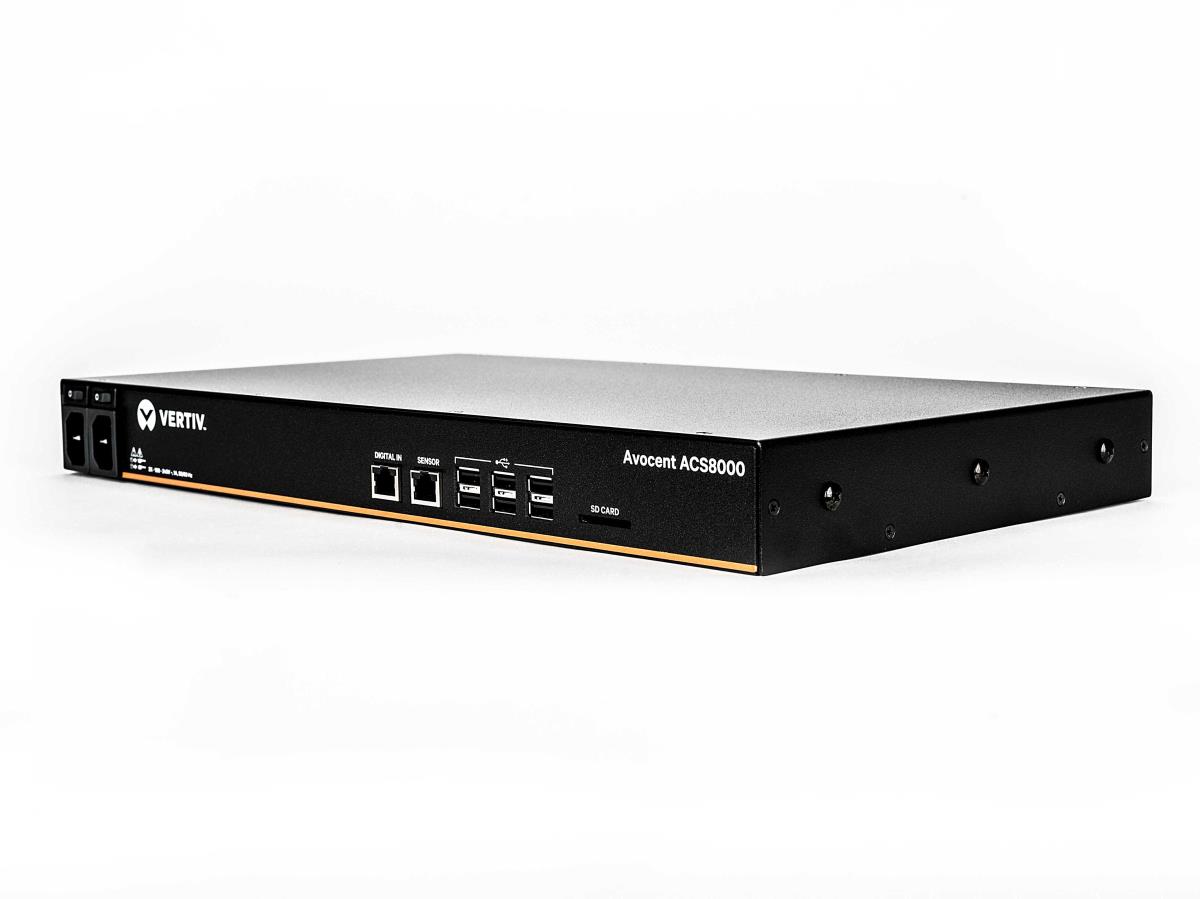

ACS8000 16-Port Console System with single AC Power Supply

ACS8000 16-Port Console System with single AC Power Supply

Part Number:
ACS8016SAC-404
Language:
UK
 Without VATWith VAT
Base Price:€3.248,88€3.931,15
Recupel:+ €0,07+ €0,08
Total:€3.248,95€3.931,23

Introduction

The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6).

Technical details

Rack mounting

Y

Internal modem

N

Zero Touch Provisioning (ZTP)

Y

Web-based management

Y

Temperature sensor

Y

Product colour

Black

Management features

Management protocols

CLI, HTTP/ HTTPS, SNMP

Security

Authentication method

LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)

Security algorithms

3DES,128-bit AES,192-bit AES,256-bit AES,AES,FIPS 140-2,HTTPS,IPSec,SHA-256,SNMP,SNMPv3,SSH,SSH-2

IP address filtering

Y

One-time password (OTP)

Y

Ports & interfaces

Console port

RJ-45

Serial ports quantity

16

USB 2.0 ports quantity

8

Ethernet LAN (RJ-45) ports

2

SFP module slots quantity

2

AC outlet types

C13 coupler

Software

Operating system installed

Embedded LINUX

Power

Power source type

AC

AC input voltage

104 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (typical)

20 W

Power consumption (max)

35 W

Input current

0.1 A

Number of power supply units

1

Operational conditions

Operating temperature (T-T)

-10 - 60 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

5 - 95%

Certificates

Certification

FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)

Memory

Flash memory

16000 MB

RAM capacity

1024 MB

RAM type

DDR3L

eMMC capacity

16 GB

Processor

Processor family

ARM Cortex-A9

Processor architecture

ARM Cortex-A9

Processor cores

2

Processor frequency

667 MHz

Network

Copper ethernet cabling technology

10BASE-T,100BASE-T,1000BASE-T

Cable types supported

Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber

Other features

Safety

UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)

Weight & dimensions

Dimensions (WxDxH)

438.2 x 241.3 x 44.5 mm

Weight

3.4 kg
