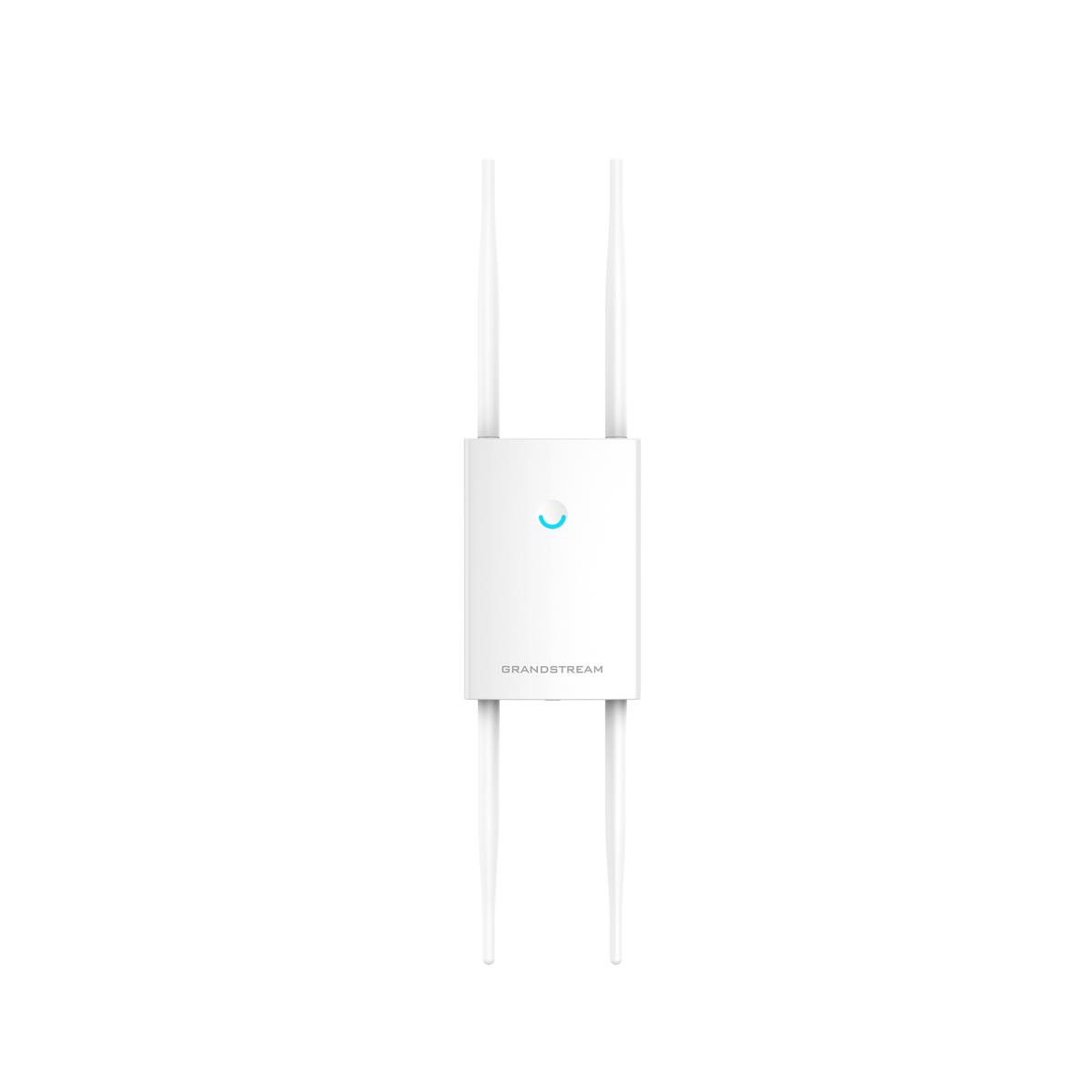

Gwn7630lr - Wi-Fi Access Point 4*4 Mimo

Introduction

The GWN7630LR is an outdoor long-range Wi-Fi access point for medium to large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO technology, and a sophisticated antenna design for maximum network throughput that supports 200+ clients and an expanded 300 meter coverage range. the GWN7630LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

Features

2.4 GHz

Y

5 GHz

Y

Maximum data transfer rate

1733 Mbit/s

Maximum data transfer rate (2.4 GHz)

600 Mbit/s

Maximum data transfer rate (5 GHz)

1733 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Number of users

200 user(s)

Channels quantity

4 channels

Bluetooth

N

MIMO

Y

MIMO type

Multi User MIMO

Virtual LAN features

SSID-based VLAN assignment

Security

Security algorithms

WEP,WPA,WPA2-Enterprise,WPA2-PSK

Number of SSID supported

16

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

Power

Power over Ethernet (PoE)

Y

Design

Placement

Ceiling

Product colour

White

Antenna

Antenna type

Internal

Antennas quantity

4

Antenna gain level (max)

3.5 dBi

Weight & dimensions

Width

533.1 mm

Depth

115 mm

Height

40 mm

Weight

564 g

Packaging data

Number of products included

1 pc(s)
