Wireless Access Point 3550 Mbit/s White Power Over

Introduction

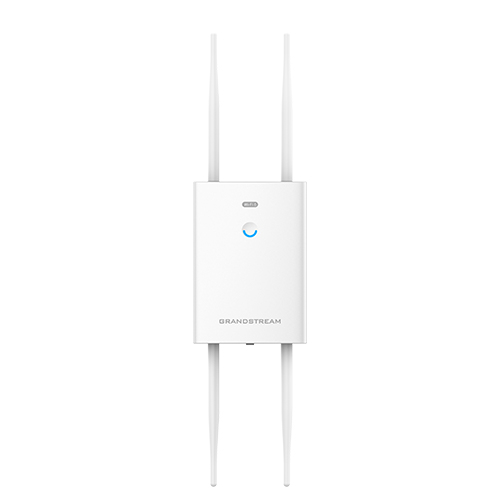

The GWN7664LR is an outdoor 802.11ax 4×4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 750 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the GWN7664LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

Features

2.4 GHz

Yes

5 GHz

Yes

Maximum data transfer rate

3550 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

MIMO

Yes

MIMO type

Multi User MIMO

Quality of Service (QoS) support

Yes

Security

Security algorithms

WEP, WPA, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP, WPA3

Number of SSID supported

32

Protocols

Supported network protocols

IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

Power

Power over Ethernet (PoE)

Yes

Power consumption (max)

18 W

Design

Placement

Ceiling, Wall

Product colour

White

International Protection (IP) code

IP66

Reset button

Yes

LED indicators

Yes

Certification

FCC, CE, RCM, IC

Antenna

Antenna type

External

Antennas quantity

4

Weight & dimensions

Width

362.2 mm

Depth

140 mm

Height

449 mm

Packaging content

Number of products included

1 pc(s)

Antenna included

Yes

Operational conditions

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-30 - 60 °C
