IiYAMA

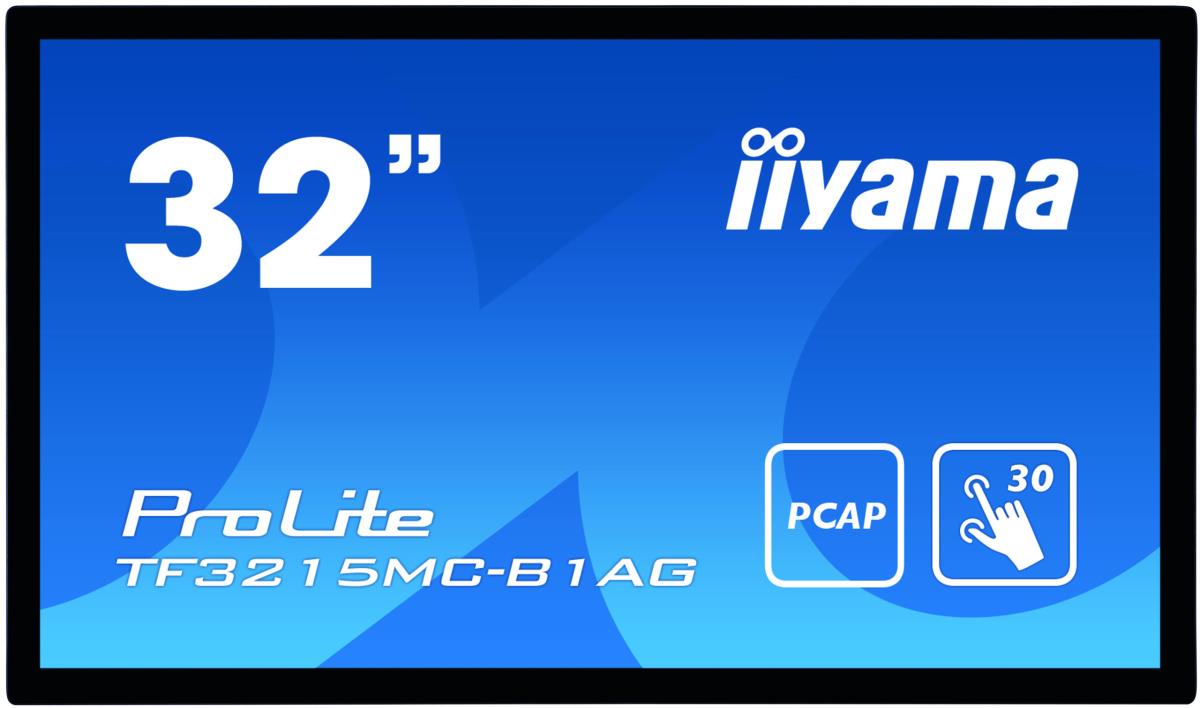

Touch Monitor - ProLite TF3215MC-B1AG - 32in - 1920x1080 (FHD) - Black

Touch Monitor - ProLite TF3215MC-B1AG - 32in - 1920x1080 (FHD) - Black

Part Number:
TF3215MC-B1AG
Language:
UK
 Without VATWith VAT
Base Price:€996,65€1.205,95
Recupel:+ €1,41+ €1,71
Total:€998,06€1.207,65

Introduction

The ProLite TF3215MC-B1AG (31.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B1AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display

Display diagonal

81.3 cm (32")

Display resolution

1920 x 1080 pixels

Display type

LED

HD type

Full HD

Display technology

AMVA3

Native aspect ratio

16:9

Display glass type

Tempered glass

Response time

8 ms

Display brightness

425 cd/m²

Contrast ratio (typical)

16:9

Horizontal scan range

30 - 68 kHz

Vertical scan range

47 - 63 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display viewable area (HxV)

392.8 x 698.4 mm

Contrast ratio (dynamic)

3000:1

Display diagonal (metric)

80 cm

Display number of colours

16.78 million colours

Design

Product colour

Black

Housing material

Metal

Glass thickness

3 mm

Surface hardness

7H

International Protection (IP) code

IP65

Performance

Touch technology

Single-touch

Touchscreen technology

Projected capacitive system

Touchscreen type

Kiosk

Number of simultaneous touchpoints

30

Built-in camera

N

Built-in microphone

N

Number of OSD languages

7

On Screen Display (OSD) languages

German, English, Estonian, French, Italian, Japanese

Mean time between failures (MTBF)

50000 h

OmniTapps Multitouch compatibility

N

HDCP

Y

Windows operating systems supported

Y

Linux operating systems supported

Y

Operating hours (hours/days)

24/7

Plug and Play

Y

Country of origin

China

Ports & interfaces

HDMI

Y

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

Ergonomics

Wall mountable

Y

VESA mounting

Y

Power

Energy efficiency class (SDR)

F

Energy consumption (SDR) per 1000 hours

32 kWh

Power consumption (typical)

43 W

Power consumption (standby)

2 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width (without stand)

74 cm

Depth (without stand)

6.1 cm

Height (without stand)

43.4 cm

Weight (without stand)

10.3 kg

Packaging data

Package width

890 mm

Package depth

155 mm

Package height

630 mm

Package weight

12.8 kg

Packaging content

Cables included

AC, HDMI, USB

Quick start guide

Y

Other features

Megapixel (approx.)

2.1 MP

Full HD

Y

No options for this product
