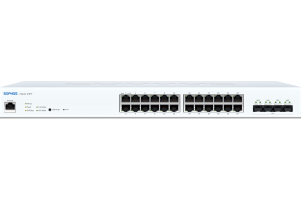

Switch Managed CS110-24FP - 24 Ports - Rack-Mountable

Management features

Switch type

Managed

Web-based management

Yes

Configuring Location Settings (CLI)

Yes

System event log

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

24

SFP+ module slots quantity

4

Fiber optic connector

SFP+

Console port

RJ-45

Power connector

AC-in jack

Network

Networking standards

IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Yes

Port mirroring

Yes

IP routing

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

VLAN support

Yes

Number of VLANs

256

Data transmission

Switching capacity

128 Gbit/s

MAC address table

16000 entries

Jumbo frames support

Yes

Jumbo frames

10000

Security

DHCP features

DHCP relay

Access Control List (ACL)

Yes

IGMP snooping

Yes

Security algorithms

HTTPS, SSH, SNMP, SNMPv2, SNMPv3

SSH/SSL support

Yes

Multicast features

Multicast support

Yes

Design

Rack mounting

Yes

Form factor

1U

Product colour

Silver

LED indicators

Yes

Number of fans

2 fan(s)

Performance

Internal memory

512 MB

Flash memory

128 MB

Power

Power source

AC

Power plug type

Type C

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) ports quantity

24

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

410 W
