SATA Hard Drive Adapter Converter - SSD/HDD 2.5in To 3.5in

Introduction

Turn a 2.5" SATA HDD/SSD into a 3.5" SATA Drive

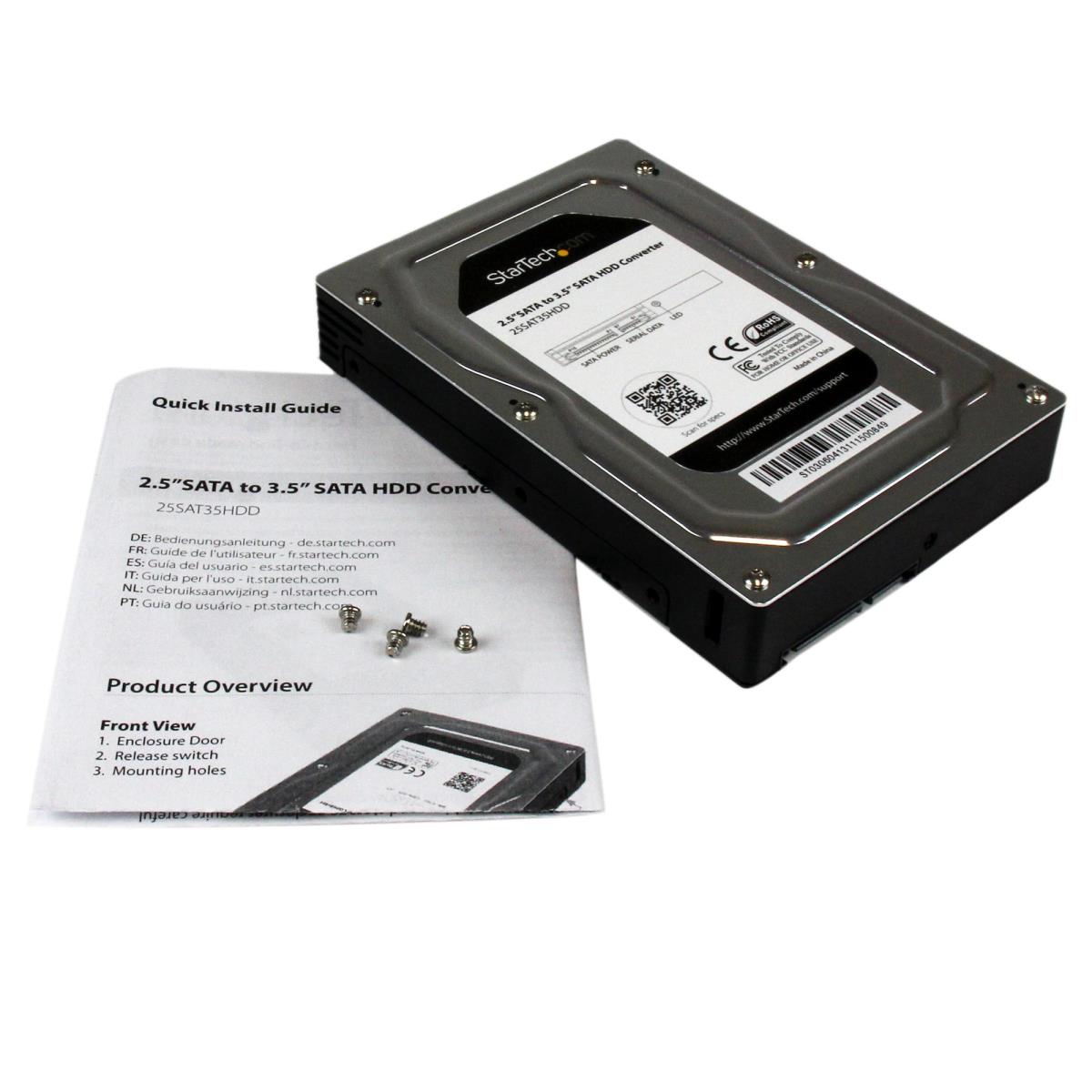

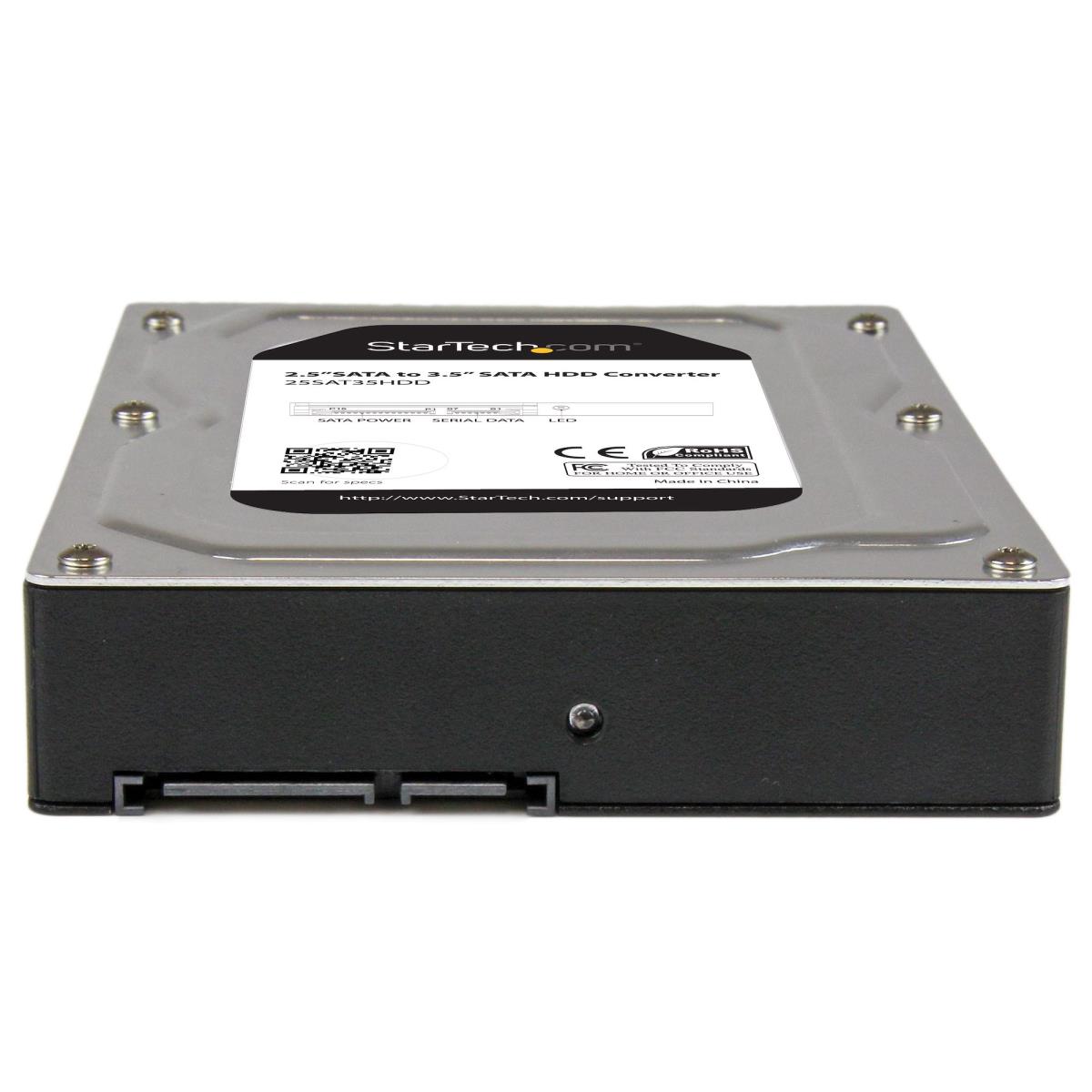

The 25SAT35HDD 2.5" to 3.5" hard drive adapter enclosure turns a 2.5" SATA hard drive (HDD) or solid state drive (SSD) into a 3.5" drive.

The adapter enclosure lets you substitute a 3.5" hard drive for a 2.5" SSD/HDD in any application that would typically require a 3.5" drive, such as desktop chassis, backplane, or docking station. The enclosure has the same dimensions as a standard 3.5" hard drive, including mounting points, and SATA connector locations.

With support for drives up to 12.5mm in height, and high-capacity SATA I/II/III drives (tested up to 1TB) this HDD adapter ensures compatibility with virtually any 2.5" SATA hard drive or solid state drive.

The StarTech.com Advantage

- Seamless 2.5" SSD/HDD integration with standard 3.5" hard drive dimensions
- Maximum drive compatibility with support for SSDs/HDDs up to 12.5mm in height
- Improve the performance speed of any 3.5" hard drive application by adapting a 2.5in solid state drive

Features

Size (imperial)

8.89 cm (3.5")

Type

Storage drive tray

Number of HDDs supported

1

HDD size

2.5"

Supported storage drive heights

12.5 mm

Data transfer rate

6 Gbit/s

Product colour

Black, Silver

Material

Aluminium, Plastic

Certification

FCC, REACH

Weight & dimensions

Width

102 mm

Depth

146 mm

Height

36 mm

Weight

260 g

Packaging data

Package width

115 mm

Package depth

163 mm

Package height

38 mm

Package weight

260 g

Packaging content

Cables included

SATA

Screws included

Y

Manual

Y

Operational conditions

Storage temperature (T-T)

5 - 55 °C

Operating temperature (T-T)

5 - 55 °C

Operating relative humidity (H-H)

5 - 85%

Technical details

Sustainability certificates

RoHS
