WHADDA
Motor Driver For Microbit

Motor Driver For Microbit

Part Number:
WPI403
Language:
EX
 Without VATWith VAT
Base Price:€12,31€14,90
Total:€12,31€14,90
Add to cart

Introduction

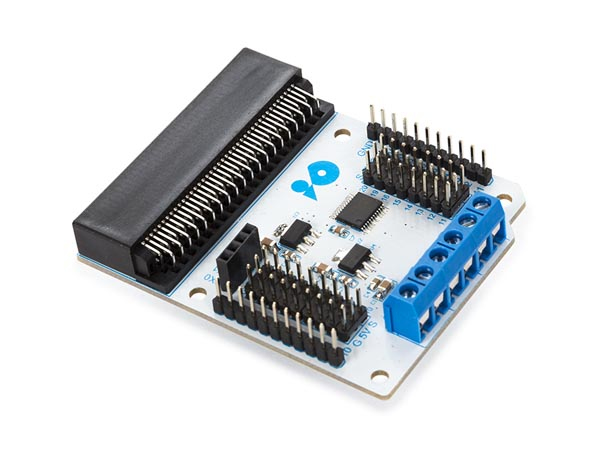

This motor driver breakout board integrates the TB6612FNG chip and gives your micro:bit the ability to drive two channel DC motors. Each channel can output up to 1.2 A continuously with peak current up to 2 A. There are 4 motor control modes: Forward, reverse, brake and stop. The PWM supporting frequency is up to 100 kHz. The micro:bit pins are broken out into 3 pin headers for easy access and the integrated voltage regulator provides 3.3V and 5V power output. This breakout board is ideal if you want to start with robot projects!

Features

Product type

Breakout board

Product colour

Black, Blue, White

Weight & dimensions

Width

70 mm

Depth

58 mm
