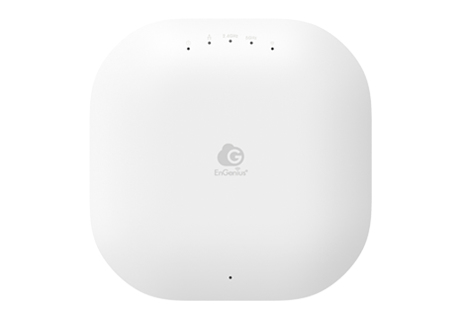

Wireless Ac1300 Ap Ceiling Mount Poe+

Introduction

Elevate your business’s Wi-Fi with the EnGenius ECW120 11ac Wave 2 Cloud Managed Indoor Wireless Access Point (AP). It delivers blazing-fast 1.3 Gbps speeds and a higher user capacity. It supercharges performance up to 30% faster than traditional 3x3 APs. This dual-band AP improves connection reliability for exceptional next-generation, business-class Wi-Fi.

Features

2.4 GHz

Y

5 GHz

Y

Maximum data transfer rate

867 Mbit/s

Maximum data transfer rate (2.4 GHz)

400 Mbit/s

Maximum data transfer rate (5 GHz)

867 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Frequency band

2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x

MIMO

Y

MIMO type

Multi User MIMO

Spread spectrum method

DSSS, OFDM

Modulation

16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK

Fit AP mode features

Mesh networking

Wi-Fi Multimedia (WMM)/(WME)

Y

VLAN support

Y

Virtual LAN features

Tagged VLAN

Quality of Service (QoS) support

Y

Transmitting power

23 dBmW

Security

Security algorithms

64-bit WEP, 128-bit WEP, 152-bit WEP, SSH, WPA, WPA-AES, WPA-EAP, WPA-TKIP, WPA2

MAC address filtering

Y

Service Set Identifier (SSID) features

Multiple SSIDs

Number of SSID supported

8

Protocols

Management protocols

SNMP

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

DC-in jack

Y

Power

Power over Ethernet (PoE)

Y

Power consumption (max)

12 W

Design

Placement

Ceiling, Wall

Product colour

White

Cable lock slot

Y

Cable lock slot type

Kensington

Reset button

Y

LED indicators

Y

Certification

FCC, CE, IC

Antenna

Antenna type

Internal

Antenna direction type

Omni-directional

Antenna features

Integrated antenna

Antennas quantity

2

Antenna gain level (max)

5 dBi

Weight & dimensions

Width

161.5 mm

Depth

161.5 mm

Height

41.5 mm

Weight

362.8 g

Packaging content

AC adapter included

Y

Mounting kit

Y

Quick start guide

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 80 °C

Logistics data

Harmonized System (HS) code

85176990
