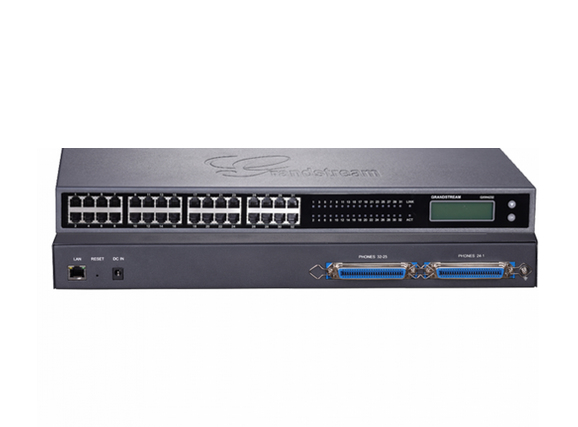

Gateway Gxw4232 32x Fxs

Introduction

The GXW4200 high-density FXS gateway series enables businesses of all sizes to create an easy-to-deploy VoIP solution that takes advantage of Gigabit speeds. These FXS gateways offer the ability to seamlessly connect multiple locations and all devices within an office to any hosted or on premise IP PBX network to make deployments as easy as possible. The GXW4200 series includes 16/24/32/48 FXS ports and a Gigabit network port. Deploy the GXW4200 series to allow any businesses to create a cost-effective hybrid IP and analog telephone system that allows them to enjoy the benefits of VoIP communications while preserving investment on existing analog phones, Fax machines and legacy PBX systems.

Design

Mounting type

Rack mounting

LED indicators

Power

Certification

FCC: Part 15 (CFR 47) Class B CE: EN55022 Class B, EN55024, EN61000-3-2, EN16000-3-3, EN60950-1, RoHS C-TICK; AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AN/NZS 60950 ITU-T K.21 (Basic Test Level); UL 60950

Features

Voice codecs

G.711, G.723.1, G.726, G.729ab, iLBC

Protocols

Supported protocols

TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PP-PoE, STUN, LLDP

Network

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Data transfer rate

1 Gbit/s

Wireless connection

N

Ports & interfaces

I/O ports

32 x RJ-11, 2 x Telco 50-pin

Ethernet LAN (RJ-45) ports

1

Management features

Web-based management

Y

Quality of Service (QoS) support

Y

Power

Input voltage

100 - 240 V

Input frequency

50/60 Hz

Output voltage

12 V

Output current

5 A

Weight & dimensions

Weight

3.21 kg

Dimensions (WxDxH)

440 x 185 x 44 mm

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 90%

Logistics data

Harmonized System (HS) code

85176990
