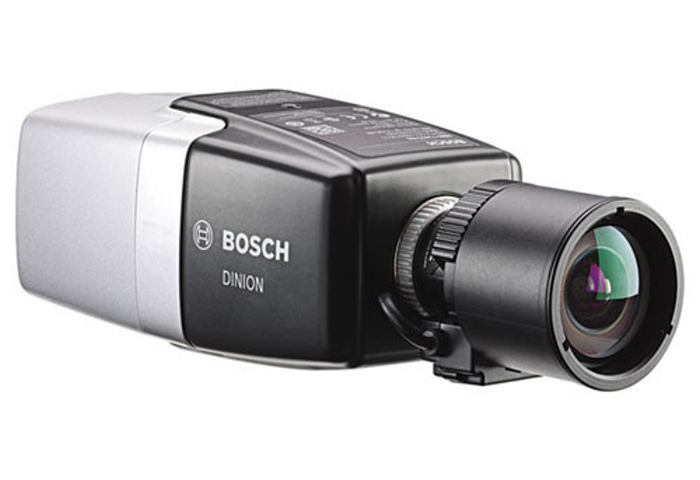

Dinion Ip 6000 1080p

Introduction

This camera provides clear images 24/7 - even at night or under low-light conditions. The exceptional starlight sensitivity enables this camera to work with a minimum of ambient light. The extended dynamic mode provides detailed images in scenes with challenging lighting. The camera is available in 1080p or 720p resolution versions and provides up to 60 images per second. There is a selection of high quality lenses separately available.

Performance

Type

IP security camera

Placement supported

Indoor & outdoor

Connectivity technology

Wired

PTZ control

Y

Wide Dynamic Range (WDR)

Y

Day/night mode

Y

Alarm input/output

Y

Remote viewing

Y

Certification

CE, cULus, WEEE, RCM, EAC

Design

Form factor

Bullet

Mounting type

Ceiling/wall

Product colour

Black, Metallic

Fog proof

Y

Camera

Minimum illumination

0.0008 lx

White balance

Auto, Manual

Camera shutter type

Electronic

Camera shutter speed

1/25 - 1/15000 s

Image sensor

Number of sensors

1

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Sensor type

CMOS

Number of effective pixels (H x V)

1920 x 1080 pixels

Video

Maximum resolution

1920 x 1080 pixels

Total megapixels

2 MP

Video compression formats

H.264,M-JPEG

Supported graphics resolutions

704 x 480,768 x 432,854 x 480 (WVGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080)

Supported video modes

720p,1080p

Frame rate

60 fps

Analog signal format system

NTSC,PAL

Video streaming

Y

Noise reduction

Y

Full HD

Y

Image quality adjustment

Brightness, Contrast, Saturation

Flip & mirror

Y

Privacy masking

Y

Time stamp overlay

Y

Text caption overlay

Y

Back Light Compensation (BLC)

Y

Region of Interest (ROI) encoding

Y

Audio

Audio system full duplex

Y

Audio input channels

1

Audio output channels

1 channels

Audio codecs

G.711, L16, AAC-LC

Signal-to-Noise Ratio (SNR)

50 dB

Network

Ethernet LAN

Y

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.3af,IEEE 802.3at

Supported network protocols

IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIB- II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP

Wi-Fi

N

Bluetooth

N

Cabling technology

10/100Base-T(X)

Quality of Service (QoS) support

Y

Storage

Built-in HDD

N

Card reader integrated

Y

Compatible memory cards

MicroSDHC,MicroSDXC

Maximum memory card size

2000 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

BNC output ports

1

DC-in jack

Y

Security

Security algorithms

3DES,256-bit AES,DES,EAP-TLS,SSL/TLS

Management features

Web-based management

Y

Web browser

Y

Firmware upgradeable

Y

Reset button

Y

Behavior analysis

Intrusion detection, Line crossing detection, Object removal detection

Power

Power source type

DC, PoE

Power consumption

600 mA

Power consumption (max)

7.2 W

DC output voltage

12

Weight & dimensions

Width

78 mm

Height

66 mm

Length

140 mm

Weight

690 g

Packaging content

Number of cameras

1

Technical details

Sustainability certificates

RoHS
